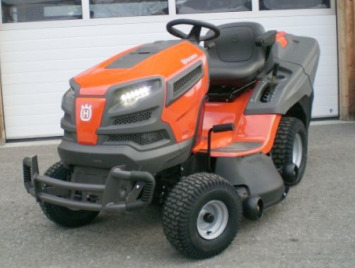

Husqvarna TC 342T Garden Tractor
The
Husqvarna TC 342T is a two-wheel drive garden tractor. This model was
manufactured from 2016 to 2022. The Husqvarna TC342T drivetrain system
components: Kawasaki FR651V 4-cycle vertical-shaft V-twin air-cooled gasoline
engine and Tuff Torq K57 AH belt-driven hydrostatic transmission with infinite
forward and reverse gears.
A 44.3 cu.in (726 cc) engine has a cylinder bore of 3.07" (78 mm),
piston stroke of 3.00" (76 mm), and max power of 21.5 hp (16 kW). The
maximum travel speed (forward/reverse): 6.8 mph (11 km/h) and 2.8 mph
(4.5 km/h).
The Husqvarna TC 342T lawn tractor is equipped with a manual steering
system, internal wet disc brakes, pneumatic wheels, 15x6.00-6 front
tires, and 18x9.50-8 rear tires. The tractor is compatible with a 42"
mid-mount 2-blade mower deck with cutting height of 1.5-4.0 in (38-101
mm), electric blade engagement, six cut positions, two anti-scalp
wheels, and mechanical lift system.
| Engine Model |
Kawasaki FR651V |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.3 (726) |
| Engine Bore, in (mm) |
3.07 (78.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Maximum Engine Power, hp (kW) |
21.5 (16.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
53.3 (39.3) |
| Torque Speed, rpm |
2200 |
| Compression Ratio |
8.2:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Internally vented with fuel shut-off solenoid |
| Lubrication System |
Full pressure with spin-on oil filter |
| Ignition System |
Electronic spark ignition |
| Spark Plug |
NGK BPR4ES |
| Spark Plug Gap, in (mm) |
0.027-0.031 (0.7-0.8) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery CCA |
300 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K57 AH |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Brake Type |
Internal wet disc |
| Oil Capacity, qts (L) |
2.45 (2.30) |
| Maximum Forward Speed, mph (kph) |
6.8 (11.0) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
42 (1070) |
| Overall Width (Max), in (mm) |
51 (1300) |
| Overall Width (Min), in (mm) |
44.1 (1120) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
572 (260) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
42 (1070) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
6 |
| Anti-Scalp Wheels |
2 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
