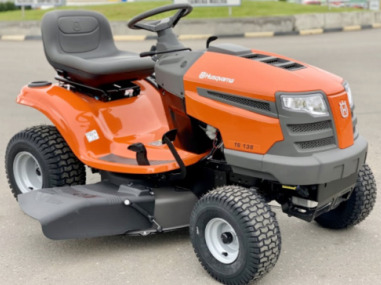

Husqvarna TS 138 Lawn Tractor
The
Husqvarna TS 138 2WD lawn tractor was manufactured from 2013 to 2019. The
Husqvarna TS138 tractor is powered by 30.5 cubic inches (501 cc) Briggs and
Stratton 31R577 4-cycle single cylinder air-cooled gasoline engine with a
maximum power of 15 Hp (11.2 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, cartridge type air filter, and electronic ignition
system. The tractor is fitted with a Tuff Torq K46 hydrostatic transaxle
with foot-controlled variable speed drive. The max forward speed -
5.2 mph (8.4 km/h), max reverse speed - 2.2 mph (3.5 km/h).
The
Husqvarna TS 138 is equipped with a manual steering system, disc brakes,
15x6.00-6 front tires, and 18x8.50-8 rear tires. The lawn tractor is
compatible with a 38" mid-mount 2-blade side discharge mower deck with
cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, 6 cut
positions, and mechanical lift system with hand operated.
| Engine Model |
Briggs and Stratton 31R577 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Engine Configuration |
Vertical shaft |
| Displacement, cu.in (cc) |
30.5 (501) |
| Engine Bore, in (mm) |
3.56 (90.5) |
| Engine Stroke, in (mm) |
3.06 (78.0) |
| Maximum Engine Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
8 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
21.5:1 |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.2 (3.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x8.50-8 |
| Wheelbase, in (mm) |
48 (1215) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
40 (1020) |
| Overall Width, in (mm) |
40 (1020) |
| Ground Clearance, in (mm) |
6.5 (165) |
| Weight, lb (kg) |
396 (180) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Methods |
Side discharge |
| Cutting Deck Type |
Stamped, reinforced |
| Cutting Width, in (mm) |
38 (970) |
| Overall Width, in (mm) |
48 (1220) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cutting Height Adjustment |
Central, spring-assisted |
| Cut Positions |
6 |
| Lift System |
Mechanical |
