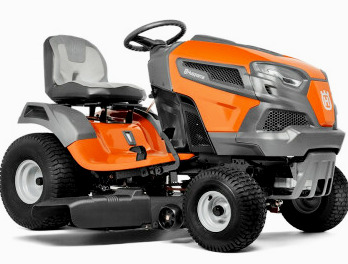

Husqvarna TS142TX Lawn Tractor
The
Husqvarna TS142TX lawn tractor was manufactured from 2019 to 2022. The Husqvarna
TS 142 TX tractor is powered by 40.1 cubic inches (656 cc) Briggs and Stratton
40U777 Endurance Series 4-cycle V-twin cylinder OHV air-cooled gasoline engine
with a rated power of 20 Hp (14.8 kW).
The engine has a float-feed fixed main jet carburetor, integral type
fuel pump, full pressure lubrication with spin-on oil filter, and
electronic ignition system. The tractor is fitted with Tuff Torq K46
belt-driven hydrostatic transmission with infinite forward and reverse
gears. The maximum forward speed - 5 mph (8 km/h), maximum reverse speed
- 2.5 mph (4.1 km/h).
The Husqvarna TS 142TX is equipped with a manual steering system,
pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The
lawn tractor is compatible with a 42" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0 in (38-102 mm), electric blade engagement, six
cut positions, central cutting height adjustment with spring-assisted,
two anti-scalp wheels, and mechanical lift system.
| Engine Model |
Briggs and Stratton 40U777 Endurance Series |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.1 (656) |
| Cylinder Bore, in (mm) |
2.97 (75.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump Type |
Integral |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with spin-on oil filter |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion QC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
9 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, CCA |
230 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
49 (1240) |
| Overall Width (Max), in (mm) |
48.8 (1240) |
| Overall Width (Min), in (mm) |
43.7 (1110) |
| Turning Radius, in (mm) |
16 (405) |
| Weight (with Mower Deck), lb (kg) |
616 (280) |
| Weight (w/o Mower Deck), lb (kg) |
476 (216) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
Steel |
| Cutting Methods |
Collect, mulch, side discharge |
| Number of Blades |
2 |
| Blade Type |
High performance |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
42 (1070) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Cutting Height Adjustment |
Central, spring-assisted |
| Anti-Scalp Wheels |
4 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
