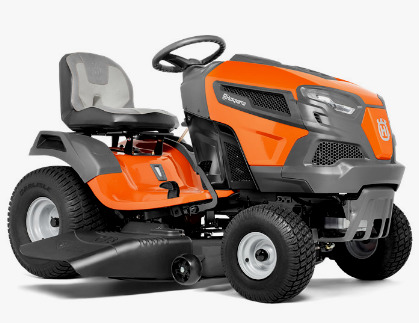

Husqvarna TS 146TXD Lawn Tractor
The
Husqvarna TS 146TXD is a 2WD lawn tractor with electric engagement of cutting
blades. This model was manufactured from 2018 to 2020.
The components of Husqvarna TS146TXD driveline system: a 44.2 cubic
inches (724 cc) Briggs and Stratton 44U777 Professional IC four-cycle
vertical-shaft V-twin cylinder OHV air-cooled gasoline engine with a max
power of 23 Hp (17 kW), and Tuff Torq K46 CR hydrostatic transmission
with automatic differential lock. The engine has a fixed main jet
carburetor, Integral fuel pump, full pressure lubrication with oil
filter, and air cleaner with multi-stage filter.
The maximum forward speed - 5 mph (8 km/h), max. reverse speed - 2.2 mph
(3.5 km/h). The tractor is equipped with 15x6.00-6 front tyres and
20x10.00-8 rear tyres. The wheel base is 48 inches (1220 mm). The
Husqvarna TS 146TXD is compatible with a 46" mid-mount 2-blade side
discharge mower deck with cutting height of 1.5-4.0" (38-102 mm), and
mechanical lift with hand operated.
| Engine Model |
Briggs and Stratton 44U777 Professional IC |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
23.0 (17.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
16 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 CR |
| Transmission Type |
Hydrostatic with automatic differential lock |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Cruise Control |
Standard |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.2 (3.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
47.2 (1200) |
| Overall Width (Max), in (mm) |
57 (1450) |
| Overall Width (Min), in (mm) |
48 (1220) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
630 (287) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
13 Gauge steel |
| Cutting Method |
Side discharge |
| Number of Blades |
2 |
| Blade Type |
High Performance |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
46 (1170) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Cutting Height Adjustment |
Central, spring-assisted |
| Anti-Scalp Wheels |
4 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
