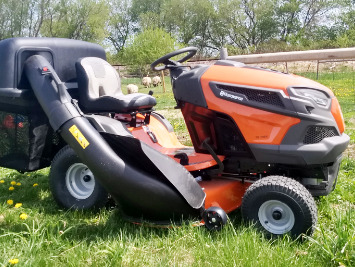

Husqvarna TS146X Lawn Tractor

The Husqvarna TS 146X is a 2-wheel drive lawn tractor. This model was manufactured from 2019 to 2022. The Husqvarna TS146X drivetrain system components: Briggs and Stratton 40N677 Endurance Series 4-cycle V-twin cylinder OHV air-cooled gasoline engine and Tuff Torq K46 BT belt-driven hydrostatic transmission with infinite forward and reverse gears.

A 40.1 cu.in (656 cc) engine has a cylinder bore of 2.97" (75 mm), piston stroke of 2.89" (73 mm), and rated power of 22 hp (16.3 kW). The maximum travel speed (forward/reverse): 5.2 mph (8.4 km/h) and 2.9 mph (4.6 km/h).

The Husqvarna TS 146X tractor is equipped with a manual steering system, pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The lawn tractor is compatible with a 46" mid-mount 2-blade side discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, two anti-scalp wheels, and mechanical lifting system.

Engine
Engine Model Briggs and Stratton 40N677 Endurance Series
Engine Type 4-cycle V-twin cylinder OHV air-cooled gasoline engine
Number of Cylinders 2
Displacement, cu.in (cc) 40.1 (656)
Cylinder Bore, in (mm) 2.97 (75.0)
Piston Stroke, in (mm) 2.89 (73.0)
Rated Engine Power, hp (kW) 22.0 (16.3)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1600
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float-feed
Fuel Pump Type Integral
Governor Type Mechanical
Lubrication System Full pressure with spin-on oil filter
Air Cleaner Paper cartridge with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion QC12YC
Spark Plug Gap, in (mm) 0.03 (0.76)
Fuel Tank Capacity, gal (L) 3.0 (11.5)
Oil Capacity, qts (L) 2.0 (1.9)

Electrical System
Electrical System Rating, Volts 12
Charging System Rating, Amps 9
Starter Type Electric
Number of Batteries 1
Battery, CCA 230
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Manual
PTO Speed, rpm 3000

Transmission
Transmission Model Tuff Torq K46 BT
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Drive Train Transaxle with foot-controlled variable speed drive
Axle Shaft Size, in (mm) 0.75 (19.1)
Maximum Forward Speed, mph (kph) 5.2 (8.4)
Maximum Reverse Speed, mph (kph) 2.9 (4.6)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Tire Type Pneumatic wheels
Front Tire Size 15x6.00-6
Rear Tire Size 20x10.00-8

Dimensions and Weight
Wheelbase, in (mm) 48 (1220)
Length, in (mm) 70 (1780)
Height, in (mm) 48.5 (1240)
Overall Width (Max), in (mm) 56.7 (1440)
Overall Width (Min), in (mm) 49 (1245)
Turning Radius, in (mm) 16 (405)
Weight, lb (kg) 561 (255)

46" Mower Deck
Mower Deck Type Mid-mount
Mower Deck Construction Stamped, reinforced
Mower Deck Material 13 Gauge steel
Cutting Method Side discharge
Number of Blades 2
Blade Engagement Manual
Cutting Width, in (mm) 46 (1170)
Cutting Height, in (mm) 1.5-4.0 (38-102)
Cut Positions 6
Cutting Height Adjustment Central, spring-assisted
Spindle Type Cast-iron
Spindle Mount 4 Point
Anti-Scalp Wheels 2
Deck Drive Belt
Lift System Mechanical, hand operated
