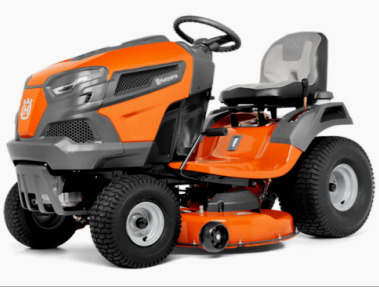

Husqvarna TS 146XD Lawn Tractor
The
Husqvarna TS 146XD 2WD lawn tractor was manufactured from 2019 to 2022. The
Husqvarna TS146XD tractor is powered by 44.2 cubic inches (724 cc) Briggs and
Stratton 44N677 Intek 4-cycle vertical-shaft V-twin OHV air-cooled gasoline
engine with a maximum power of 22 Hp (16.4 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, multi-stage air cleaner, and electronic spark ignition
system. The tractor is fitted with Tuff Torq K46 CR hydrostatic
transmission with automatic differential lock and foot-controlled
variable speed drive. The maximum forward speed - 5.5 mph (8.8 km/h),
maximum reverse speed - 2.5 mph (4 km/h).
The Husqvarna TS 146XD riding mower is equipped with a manual steering,
pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The
tractor is compatible with a 46" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, 6 cut
positions, and mechanical lift system with hand operated.
| Engine Model |
Briggs and Stratton 44N677 Intek |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 CR |
| Transmission Type |
Hydrostatic with automatic differential lock |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Cruise Control |
Standard |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
47.6 (1210) |
| Length, in (mm) |
70 (1780) |
| Height, in (mm) |
47.2 (1200) |
| Overall Width (Max), in (mm) |
57 (1445) |
| Overall Width (Min), in (mm) |
49 (1250) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
597 (271) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
13 Gauge steel |
| Cutting Method |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
46 (1170) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Spindle Type |
Cast iron |
| Spindle Mount |
4 Point |
| Anti-Scalp Wheels |
2 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
