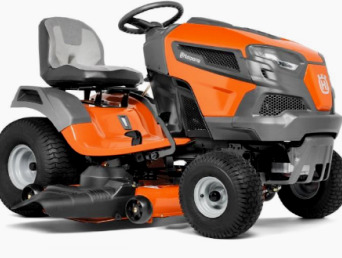

Husqvarna TS 148X Lawn Tractor

The Husqvarna TS 148X lawn tractor was manufactured between 2019 and 2022. The Husqvarna TS148X driveline consists of Briggs and Stratton 44N877 4-cycle vertical-shaft V-twin air-cooled gasoline engine, and Tuff Torq K46 BT belt-driven hydrostatic transmission with foot-controlled variable speed drive.

A 44.2 cubic inches (724 cc) engine has a cylinder bore of 3.12" (79 mm), piston stroke of 2.89" (73 mm), and max power of 24 hp (18 kW). The fuel system has a float-feed fixed main jet carburetor and integral type fuel pump. The maximum forward speed - 5.2 mph (8.4 kph), maximum reverse speed - 2.9 mph (4.6 kph).

The Husqvarna TS 148X lawn tractor is equipped with a manual steering system, pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. Compatible attachments for the tractor: 48" mid-mount 2-blade side discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, 6 cut positions, four anti-scalp wheels, and mechanical lifting system.

Engine
Engine Model Briggs and Stratton 44N877
Engine Type 4-cycle vertical-shaft V-twin air-cooled gasoline
Number of Cylinders 2
Displacement, cu.in (cc) 44.2 (724)
Engine Bore, in (mm) 3.12 (79.0)
Engine Stroke, in (mm) 2.89 (73.0)
Maximum Engine Power, hp (kW) 24.0 (18.0)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1400-1600
Maximum Torque, Nm (ft-lbs) 52.2 (38.7)
Torque Speed, rpm 2400
Fuel System Carburetor
Lubrication System Full pressure with oil filter
Spark Plug Gap, in (mm) 0.030 (0.76)
Armature Air Gap, in (mm) 0.008-0.012 (0.20-0.30)
Intake Valve Clearance, in (mm) 0.004-0.006 (0.10-0.15)
Exhaust Valve Clearance, in (mm) 0.004-0.006 (0.10-0.15)
Fuel Tank Capacity, gal (L) 3.0 (11.5)
Oil Capacity, qts (L) 2.1 (2.0)

Electrical System
Electrical System Rating, Volts 12
Charging System Alternator 15A
Starting System 12-Volt key start
Starter Type Electric
Number of Batteries 1
Battery Type Lead Acid
Battery Voltage, Volts 12
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Manual
PTO Speed, rpm 3000

Transmission
Transmission Model Tuff Torq K46 BT
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Drive Train Transaxle with foot-controlled variable speed drive
Axle Shaft Size, in (mm) 0.75 (19.1)
Maximum Forward Speed, mph (kph) 5.2 (8.4)
Maximum Reverse Speed, mph (kph) 2.9 (4.6)

Wheels and Tires
Drive Wheels 2WD 4x2
Front Axle Cast iron
Steering Configuration Front steer
Steering System Manual
Tire Type Pneumatic wheels
Front Tire Size 15x6.00-6
Rear Tire Size 20x10.00-8

Dimensions and Weight
Wheelbase, in (mm) 48 (1220)
Length, in (mm) 70 (1780)
Height, in (mm) 47.3 (1200)
Overall Width (Max), in (mm) 67 (1700)
Overall Width (Min), in (mm) 56 (1420)
Turning Radius, in (mm) 16 (405)
Weight, lb (kg) 605 (275)

48" Mower Deck
Mower Deck Type Mid-mount
Mower Deck Construction Stamped, reinforced
Mower Deck Material 13-Gauge steel
Cutting Method Side discharge
Number of Blades 2
Blade Engagement Manual
Cutting Width, in (mm) 48 (1220)
Cutting Height, in (mm) 1.5-4.0 (38-101)
Cut Positions 6
Spindle Material Aluminum
Spindle Type Cast-iron
Spindle Mount 4 Point
Anti-Scalp Wheels 4
Deck Drive Belt
Lift System Mechanical, hand operated
