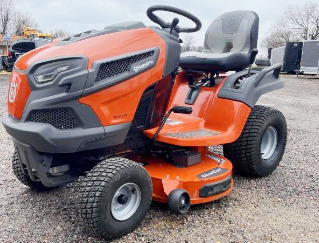

Husqvarna TS 242XD Garden Tractor

The Husqvarna TS 242XD garden tractor was manufactured between 2019 and 2022. The Husqvarna TS242XD driveline consists of Kawasaki FR651V 4-cycle vertical-shaft V-twin air-cooled gasoline engine and Tuff Torq K46 CR belt-driven hydrostatic transmission with infinite forward and reverse gears.

A 44.3 cubic inches (726 cc) engine has a cylinder bore of 3.07" (78 mm), piston stroke of 3.00" (76 mm), and max power of 21.5 hp (16 kW). The fuel system has an internally vented carburetor with fuel shut-off solenoid, and pulse fuel pump. The max forward speed - 5.5 mph (8.8 kph), max reverse speed - 2.5 mph (4 kph).

The Husqvarna TS 242XD riding mower is equipped with a manual steering system, pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. Compatible attachments for the tractor: 42" mid-mount 2-blade side discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm), electric blade engagement, 6 cut positions, two anti-scalp wheels, and mechanical lifting system.

Engine
Engine Model Kawasaki FR651V
Engine Type 4-cycle vertical-shaft V-twin air-cooled gasoline
Number of Cylinders 2
Displacement, cu.in (cc) 44.3 (726)
Engine Bore, in (mm) 3.07 (78.0)
Engine Stroke, in (mm) 3.00 (76.0)
Maximum Engine Power, hp (kW) 21.5 (16.0)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1400-1600
Maximum Torque, Nm (ft-lbs) 53.3 (39.3)
Torque Speed, rpm 2200
Compression Ratio 8.2:1
Fuel System Carburetor
Carburetor Type Internally vented with fuel shut-off solenoid
Lubrication System Full pressure with spin-on oil filter
Ignition System Electronic spark ignition
Spark Plug NGK BPR4ES
Spark Plug Gap, in (mm) 0.027-0.031 (0.7-0.8)
Intake Valve Clearance, in (mm) 0.004-0.006 (0.10-0.15)
Exhaust Valve Clearance, in (mm) 0.004-0.006 (0.10-0.15)
Fuel Tank Capacity, gal (L) 4.0 (15.0)
Oil Capacity, qts (L) 2.0 (1.9)

Electrical System
Electrical System Rating, Volts 12
Charging System Alternator 15A
Starter Type Electric
Number of Batteries 1
Battery Voltage, Volts 12
Battery CCA 300
Electric Ground Negative

Power Take-Off
PTO Operational Type Independent
PTO Clutch Electric
PTO Speed, rpm 3000

Transmission
Transmission Model Tuff Torq K46 CR
Transmission Type Hydrostatic with automatic differential lock
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Drive Train Transaxle with foot-controlled variable speed drive
Cruise Control Standard
Axle Shaft Size, in (mm) 0.75 (19.1)
Maximum Forward Speed, mph (kph) 5.5 (8.8)
Maximum Reverse Speed, mph (kph) 2.5 (4.0)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Tire Type Pneumatic wheels
Front Tire Size 15x6.00-6
Rear Tire Size 20x10.00-8

Dimensions and Weight
Wheelbase, in (mm) 48 (1220)
Length, in (mm) 70 (1780)
Height, in (mm) 47.2 (1200)
Overall Width (Max), in (mm) 51 (1300)
Overall Width (Min), in (mm) 45 (1140)
Turning Radius, in (mm) 16 (405)
Weight, lb (kg) 554 (252)

42" Mower Deck
Mower Deck Type Mid-mount
Mower Deck Construction ClearCut fabricated
Mower Deck Material 10 Gauge steel
Cutting Methods Side discharge
Number of Blades 2
Blade Engagement Electric
Cutting Width, in (mm) 42 (1070)
Cutting Height, in (mm) 1.5-4.0 (38-101)
Cut Positions 6
Spindle Type Cast-iron
Spindle Mount 4 Point
Anti-Scalp Wheels 2
Deck Drive Belt
Lift System Mechanical, hand operated
