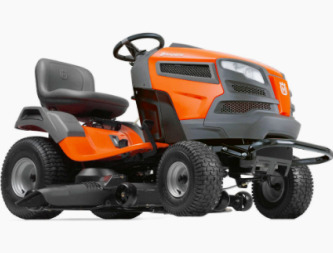

Husqvarna TS 243T Garden Tractor
The
Husqvarna TS 243T is a 2WD garden tractor. This model was manufactured from 2016
to 2019. The Husqvarna TS243T drivetrain system components: Briggs and Stratton
40U777 Endurance Series 4-cycle V-twin cylinder OHV air-cooled gasoline engine
and Tuff Torq K46 BT belt-driven hydrostatic with foot-controlled variable speed
drive.
A 40.1 cu.in (656 cc) engine has a cylinder bore of 2.97" (75 mm),
piston stroke of 2.89" (73 mm), and rated power of 20 hp (14.8 kW). The
maximum travel speed (forward/reverse): 5 mph (8 km/h) and 2.5 mph (4.1
km/h).
The Husqvarna TS 243T lawn tractor is equipped with a manual steering,
pneumatic wheels, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The
tractor is compatible with a 42" mid-mount 2-blade side discharge mower
deck with cutting height of 1.5-4.0 in (38-102 mm), electric blade
engagement, 6 cut positions, central cutting height adjustment with
spring-assisted, 4 anti-scalp wheels, and mechanical lifting system.
Engine Model |
Briggs and Stratton 40U777 Endurance Series |
Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
Number of Cylinders |
2 |
Displacement, cu.in (cc) |
40.1 (656) |
Cylinder Bore, in (mm) |
2.97 (75.0) |
Piston Stroke, in (mm) |
2.89 (73.0) |
Rated Engine Power, hp (kW) |
20.0 (14.8) |
Rated Engine Speed, rpm |
3600 |
Idle Speed, rpm |
1600 |
Cylinder Bore Type |
Cast iron sleeve |
Fuel System Type |
Carburetor |
Carburetor Type |
Float-feed |
Fuel Pump Type |
Integral |
Governor Type |
Mechanical |
Lubrication System |
Full pressure with spin-on oil filter |
Air Cleaner |
Paper cartridge with a foam pre-cleaner |
Cooling System |
Forced air |
Ignition System |
Electronic |
Spark Plug Type |
Champion QC12YC |
Spark Plug Gap, in (mm) |
0.03 (0.76) |
Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
Oil Capacity, qts (L) |
2.0 (1.9) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
16 |
Starter Type |
Electric |
Number of Batteries |
1 |
Electric Ground |
Negative |
PTO Operational Type |
Independent |
PTO Clutch |
Electric |
PTO Speed, rpm |
3000 |
Transmission Model |
Tuff Torq K46 BT |
Transmission Type |
belt-driven hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Drive Train |
Transaxle with foot-controlled variable speed drive |
Axle Shaft Size, in (mm) |
0.75 (19.1) |
Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front steer |
Steering System |
Manual |
Tire Type |
Pneumatic wheels |
Front Tire Size |
15x6.00-6 |
Rear Tire Size |
20x10.0-8 |
Wheelbase, in (mm) |
48 (1220) |
Length, in (mm) |
69.3 (1760) |
Height, in (mm) |
43 (1090) |
Overall Width (Max), in (mm) |
48.8 (1240) |
Overall Width (Min), in (mm) |
43.7 (1110) |
Turning Radius, in (mm) |
16 (405) |
Weight, lb (kg) |
466 (212) |
Mower Deck Type |
Mid-mount |
Mower Deck Construction |
Stamped |
Mower Deck Material |
Steel |
Cutting Methods |
Collect, mulch, side discharge |
Number of Blades |
2 |
Blade Engagement |
Electric |
Cutting Width, in (mm) |
42 (1070) |
Cutting Height, in (mm) |
1.5-4.0 (38-102) |
Cut Positions |
6 |
Cutting Height Adjustment |
Central, spring-assisted |
Anti-Scalp Wheels |
4 |
Deck Drive |
Belt |
Lift System |
Mechanical, hand operated |
