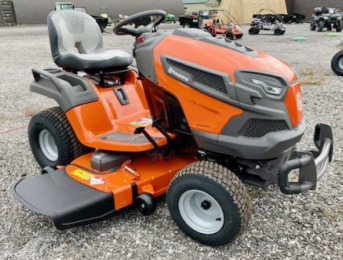

Husqvarna TS 248XD Lawn Tractor
The
Husqvarna TS 248XD lawn tractor was manufactured between 2019 and 2022. The
Husqvarna TS248XD driveline consists of Kawasaki FR691V 4-cycle vertical-shaft
V-twin air-cooled gasoline engine and Tuff Torq K46 CR belt-driven hydrostatic
transaxle with foot-controlled variable speed drive.
A 44.3 cubic inches (726 cc) engine has a cylinder bore of 3.07" (78
mm), piston stroke of 3.00" (76 mm), and max power of 23 hp (17.3 kW).
The fuel system has an internally vented carburetor with fuel shut-off
solenoid, and pulse type fuel pump.
The maximum forward speed - 5.5 mph (8.8 kph), maximum reverse speed -
2.5 mph (4 kph). The Husqvarna TS 248XD riding mower is equipped with a
manual steering system, pneumatic wheels, 16x6.50-8 front tires, and
20x10.0-12 rear tires. Compatible attachments for the tractor: 48"
mid-mount 3-blade side discharge mower deck with cutting height of
1.5-4.0 in (38-102 mm), electric blade engagement, 6 cut positions,
central cutting height adjustment with spring-assisted, four anti-scalp
wheels, and mechanical lifting system.
| Engine Model |
Kawasaki FR691V |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.3 (726) |
| Engine Bore, in (mm) |
3.07 (78.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Maximum Engine Power, hp (kW) |
23.0 (17.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
53.6 (39.5) |
| Torque Speed, rpm |
2200 |
| Compression Ratio |
8.2:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Internally vented with fuel shut-off solenoid |
| Lubrication System |
Full pressure with spin-on oil filter |
| Ignition System |
Electronic spark ignition |
| Spark Plug |
NGK BPR4ES |
| Spark Plug Gap, in (mm) |
0.027-0.031 (0.7-0.8) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starting System |
12-Volt key start |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Type |
Lead Acid |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 CR |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Cast iron |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
20x10.0-12 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
71 (1800) |
| Height, in (mm) |
48.2 (1230) |
| Overall Width (Max), in (mm) |
60 (1520) |
| Overall Width (Min), in (mm) |
50 (1260) |
| Weight, lb (kg) |
603 (274) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
ClearCut fabricated |
| Mower Deck Material |
10 Gauge steel |
| Cutting Method |
Side discharge |
| Number of Blades |
3 |
| Blade Type |
High Performance |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
48 (1220) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Cutting Height Adjustment |
Central, spring-assisted |
| Anti-Scalp Wheels |
4 |
| Spindle Type |
Cast iron |
| Spindle Mount |
4 Point |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
