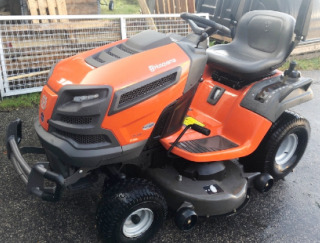

Husqvarna TS346 Garden Tractor
The
Husqvarna TS346 garden tractor was manufactured between 2014 to 2019. The
Husqvarna TS 346 driveline consists of a 44.2 cubic inches (724 cc) Briggs and
Stratton 44S677 4-cycle vertical-shaft V-twin OHV air-cooled gasoline engine
with a maximum power of 22 hp (16.4 kW), or 44.2 cubic inches (724 cc) Briggs
and Stratton 44U677 4-cycle vertical-shaft V-twin OHV air-cooled gasoline engine
with a maximum power of 22 hp (16.4 kW), and Tuff Torq K57R belt-driven
hydrostatic transmission with infinite forward and reverse gears.
The maximum forward speed - 6.6 mph (10.5 kph), maximum reverse speed -
2.8 mph (4.5 kph). The Husqvarna TS 346 lawn tractor is equipped with a
manual steering, internal wet disc brakes, 15x6.00-6 front tires, and
20x10.00-8 rear tires. Compatible attachments for the tractor: 46"
mid-mount 2-blade side discharge mower deck with cutting height of
1.5-4.0 in (38-102 mm), electric blade engagement, six cut positions,
two anti-scalp wheels, and mechanical lifting system.
| Engine Model |
Briggs and Stratton 44S677 |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Briggs and Stratton 44U677 |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
16 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K57R |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Brake Type |
Internal wet disc |
| Oil Capacity, qts (L) |
2.45 (2.30) |
| Maximum Forward Speed, mph (kph) |
6.6 (10.5) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
69.3 (1760) |
| Height, in (mm) |
44.1 (1120) |
| Overall Width, in (mm) |
48.4 (1230) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
471 (214) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
46 (1170) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
6 |
| Anti-Scalp Wheels |
2 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
