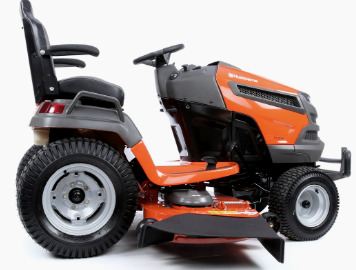

Husqvarna TS 354D Garden Tractor
The
Husqvarna TS 354D 2WD garden tractor was manufactured between 2017 and 2022. The
Husqvarna TS354D driveline consists of Kohler KT740 7000 Series 4-cycle OHV
twin-cylinder air-cooled gasoline engine and Tuff Torq K66 ELD belt-driven
hydrostatic transmission with infinite forward and reverse gears.
A 44.2 cubic inches (725 cc) engine has a cylinder bore of 3.27" (83
mm), piston stroke of 2.64" (67 mm), and rated power of 25 hp (18.6 kW).
The fuel system has a fixed main jet carburetor and pulse type fuel
pump. The maximum forward speed - 5.3 mph (8.5 kph), maximum reverse
speed - 2.8 mph (4.5 kph).
The Husqvarna TS 354D garden tractor is equipped with a manual steering,
pneumatic wheels, 16x6.50-8 front tires, and 23x10.5-12 rear tires.
Compatible attachments for the tractor: 54" mid-mount 3-blade rear
discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm),
electric blade engagement, 7 cut positions, and mechanical lifting
system with hand operated.
| Engine Model |
Kohler KT740 7000 Series |
| Engine Type |
4-cycle OHV twin-cylinder air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (725) |
| Engine Bore, in (mm) |
3.27 (83.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
25.0 (18.6) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (lb-ft) |
56.1 (41.3) |
| Torque Speed, rpm |
2600 |
| Low Idle Speed, rpm |
1750±75 |
| High Idle Speed, rpm |
3600±50 |
| Compression Ratio |
9.1:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 12A |
| Starting System |
12-Volt key start |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Type |
Lead acid |
| Battery CCA |
435 |
| Electrical Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K66 ELD |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
1.0 (25.4) |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.5) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Cast iron |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.5-12 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
71.3 (1810) |
| Height, in (mm) |
42.5 (1075) |
| Overall Width, in (mm) |
62 (1575) |
| Turning Radius, in (mm) |
19 (480) |
| Weight, lb (kg) |
660 (300) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Welded |
| Mower Deck Material |
10-Gauge steel |
| Cutting Methods |
Rear discharge, bag, mulch |
| Number of Blades |
3 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
54 (1370) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Spindle Material |
Ductile cast iron |
| Cut Positions |
7 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
