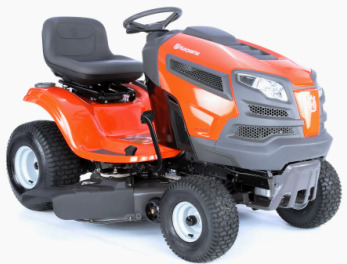

Husqvarna YTA18542 Lawn Tractor
The
Husqvarna YTA18542 lawn tractor was manufactured from 2015 to 2020. The
Husqvarna YTA18542 tractor is powered by 32.9 cubic inches (540 cc) Briggs and
Stratton 33R777 Intek 4-cycle vertical-shaft single cylinder air-cooled gasoline
engine with a maximum power of 18.5 Hp (13.8 kW), or 32.9 cubic inches (540 cc)
Briggs and Stratton 33S777 Intek 4-cycle vertical-shaft single cylinder
air-cooled gasoline engine with a rated power of 18.5 Hp (13.8 kW).
The riding lawn mower is fitted with a continuously variable
transmission with infinite forward and reverse gears. The maximum
forward speed - 7.4 mph (11.8 km/h), maximum reverse speed - 2.9 mph
(4.6 km/h).
The Husqvarna YTA18542 is equipped with a manual steering, pneumatic
wheels, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The lawn
tractor is compatible with a 42" mid-mount 2-blade mower deck with
cutting height of 1.5-4.0 in (38-101 mm), manual blade engagement, 6 cut
positions, and mechanical lift system with hand operated.
| Engine Model |
Briggs and Stratton 33R777 Intek |
| Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Cylinder Bore Type |
Cast iron sleeve |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
32.9 (540) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.06 (77.8) |
| Maximum Engine Power, hp (kW) |
18.5 (13.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Engine Model |
Briggs and Stratton 33S777 Intek |
| Engine Type |
B4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Cylinder Bore Type |
Cast iron sleeve |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
32.9 (540) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.06 (77.8) |
| Maximum Engine Power, hp (kW) |
18.5 (13.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Fuel System |
Carburetor |
| Fuel Pump Type |
Integral |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Filter |
Cartridge air cleaner |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.5 (1.4) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
9 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, CCA |
230 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Type |
Continuously variable transmission (CVT) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Method |
Pedal-operated |
| Maximum Forward Speed, mph (kph) |
7.4 (11.8) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
46.8 (1190) |
| Length, in (mm) |
69.3 (1760) |
| Height, in (mm) |
41.4 (1050) |
| Overall Width (Max), in (mm) |
49 (1245) |
| Overall Width (Min), in (mm) |
44 (1115) |
| Weight, lb (kg) |
420 (191) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Mechanical |
| Cutting Width, in (mm) |
42 (1070) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
