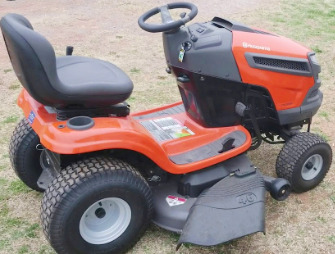

Husqvarna YTA22V46 Lawn Tractor
The
Husqvarna YTA22V46 2WD lawn tractor was manufactured from 2018 to 2022. The
Husqvarna YTA22V46 tractor is powered by 44.2 cubic inches (724 cc) Briggs and
Stratton 44N677 Intek 4-cycle vertical-shaft V-twin cylinder OHV air-cooled
gasoline engine with a maximum power of 22 Hp (16.4 kW).
The engine has a fixed main jet carburetor, Integral type fuel pump,
full pressure lubrication with oil filter, and electronic spark ignition
system. The riding mower is fitted with a continuously variable
transmission with infinite forward and reverse gears.
The maximum forward speed - 7.4 mph (11.8 km/h), maximum reverse speed -
2.9 mph (4.6 km/h). The Husqvarna YTA22V46 is equipped with a manual
steering system, pneumatic wheels, 15x6.00-6 front tires, and 20x8.00-8
rear tires. The tractor is compatible with a 46" mid-mount 2-blade mower
deck with cutting height of 1.5-4.0 in (38-101 mm), manual blade
engagement, 6 cut positions, and mechanical lift system with hand
operated.
| Engine Model |
Briggs and Stratton 44N677 Intek |
| Engine Type |
4-cycle vertical-shaft V-twin OHV air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1400-1600 |
| Cylinder Bore Type |
Cast iron |
| Fuel System |
Carburetor |
| Fuel Pump |
Integral type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Ignition System |
Electronic Spark |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Air Cleaner |
Multi-stage filter |
| Intake Valve Clearance, in (mm) |
0.003-0.005 (0.08-0.13) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 230 CCA |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
3000 |
| Transmission Type |
Continuously variable transmission (CVT) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Method |
Pedal-operated |
| Maximum Forward Speed, mph (kph) |
7.4 (11.8) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
69.3 (1760) |
| Height, in (mm) |
42 (1070) |
| Overall Width (Max), in (mm) |
56.5 (1435) |
| Overall Width (Min), in (mm) |
49 (1245) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
440 (200) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped, reinforced |
| Mower Deck Material |
13 Gauge steel |
| Cutting Method |
Side discharge, bag, mulch |
| Number of Blades |
2 |
| Blade Engagement |
Manual |
| Cutting Width, in (mm) |
46 (1170) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Cut Positions |
6 |
| Spindle Type |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
