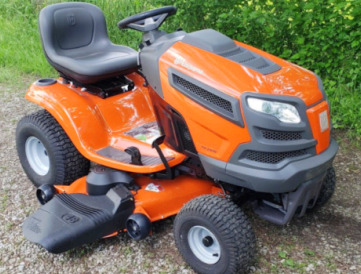

Husqvarna YTH24V48 Lawn Tractor
The
Husqvarna YTH24V48 2WD lawn tractor was manufactured from 2017 to 2021. The
Husqvarna YTH24V48 tractor is powered by 44.2 cubic inches (724 cc) Briggs and
Stratton 44N877 four-cycle vertical-shaft V-twin cylinder air-cooled gasoline
engine with a max power of 24 Hp (18 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, and electronic ignition system. The riding lawn mower
is fitted with Tuff Torq K46 BT belt-driven hydrostatic transaxle with
foot-controlled variable speed drive. The max forward speed - 5.2
mph (8.4 km/h), max reverse speed - 2.9 mph (4.6 km/h).
The
Husqvarna YTH24V48 is equipped with a manual steering system, pneumatic
wheels, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The tractor is
compatible with a 48" mid-mount 3-blade side discharge mower deck with
cutting height of 1.5-4.0 in (38-101 mm), electric blade engagement, 6
cut positions, 4 anti-scalp wheels, and mechanical lift system with hand
operated.
| Engine Model |
Briggs and Stratton 44N877 |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Engine Bore, in (mm) |
3.12 (79.0) |
| Engine Stroke, in (mm) |
2.89 (73.0) |
| Maximum Engine Power, hp (kW) |
24.0 (18.0) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
52.2 (38.7) |
| Torque Speed, rpm |
2400 |
| Fuel System |
Carburetor |
| Lubrication System |
Full pressure with oil filter |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Armature Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 15A |
| Starting System |
12-Volt key start |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Type |
Lead Acid |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 BT |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.9 (4.6) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Cast iron |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Wheelbase, in (mm) |
48 (1220) |
| Length, in (mm) |
69.3 (1760) |
| Height, in (mm) |
41.5 (1055) |
| Overall Width (Max), in (mm) |
60 (1520) |
| Overall Width (Min), in (mm) |
51 (1295) |
| Weight, lb (kg) |
545 (248) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Reinforced, stamped |
| Mower Deck Material |
13-Gauge steel |
| Cutting Methods |
Side discharge, bag, mulch |
| Number of Blades |
3 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
48 (1220) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Spindle Material |
Aluminum |
| Cut Positions |
6 |
| Anti-Scalp Wheels |
4 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
