John Deere 214 Troubleshooting
The

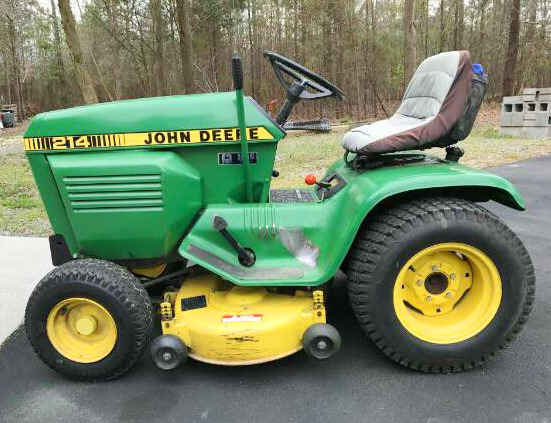

John Deere 214 is a 200-series garden tractor. This model was manufactured
between 1975 and 1987. The John Deere 214 is equipped with a 31.3 cubic inches
Kohler K321AQS 1-cylinder air-cooled gasoline engine rated at 14 hp (10.5 kW).
The Peerless 2300 belt-driven gear transmission has a 4 forward and 1 reverse
gears.
The maximum forward speed - 7 mph (11.3 km/h), max. reverse speed - 3.7
mph (6 km/h). The John Deere 214 garden tractor was equipped with a
manual steering system, band brakes, 15x6.50-8 front tires, and
23x10.50-12 rear tires.
The wheelbase is 46 inches (1160 mm). The tractor is compatible with the
following attachments: a 38" mid-mount mower deck and 46" mid-mount
mower deck. All decks have a cutting height of 1.5-3.5 inches (37-89 mm)
and mechanical lift system.
| Engine Troubleshooting |
| Engine hard starting or not starting |
| No gasoline in tank - Add gasoline |
| Incorrect fuel grade - Use quality gasoline |
| Air in fuel system - Bleed fuel system |
| Damaged spark plug wiring connection - Check spark plug wiring connection, repair or change |
| Spark plug is faulty - Install new spark plug |
| Plugged fuel filter - Replace fuel filter |
| Brake pedal not depressed - Press the brake pedal |
| Carburetor is clogged - Clean the carburetor |
| Engine has bad compression - Check cylinder block and change wear parts |
| Choke cable is unadjusted or damaged - Replace cable or adjust properly |
| Cooling fins are blocked - Need to clean or wash |
| Ignition failure - Inspect ignition system and change failed components |
| Stuck or defective choke cable - Clean or change the cable |
| Air filter element is plugged - Service or replace air filter |
| Clogged or damaged fuel pump - Clean or change fuel pump |
| Engine starts and stops suddenly |
| Spark plug is faulty - Change spark plug |
| Defective or dirty carburetor - Clean or replace carburetor |
| Faulty ignition coil - Ignition coil should be replaced |
| Worn or loose valve springs - Valve springs need to be changed |
| Stuck valves - Service the valves |
| Engine oil insufficient - Fill the crankcase with engine oil |
| Engine overloaded - Load reducing is recommended |
| Air intake grill is clogged - Wash or clean as required |
| Carburetor fuel mixture is too lean - Adjust carburetor correctly |
| Ignition timing is wrong - Adjust ignition timing correctly |
| Wrong valve setting - Set the valves correctly |
| Stale or low octane fuel - Use proper gasoline |
| Engine is overloaded - Load reducing required |
| Engine oil level low - Check and refill engine oil |
| Too low idle RPM - Test and adjust |
| Fuel pump is clogged or faulty - Check fuel pump and change if required |
| Main bearings or crankshaft failure - Have bearings or crankshaft replaced |
| Valve clearance is improper - Check and adjust |
| Cylinder bore or piston rings are worn - Replace faulty components |
| Carburetor is incorrectly adjusted or clogged - Adjust the carburetor properly or clean it |
| Dirty air filter element - Service or replace air filter |
| Fuel pump is defective or dirty - Test fuel pump and change if necessary |
| Defective ignition - Check ignition and replace faulty components |
| Worn cylinder head gasket - Replace cylinder head gasket |
| Stuck or burned valves - Clean or change valves |
| Damaged or worn push rod - Push rod should be replaced |
| Worn cylinder block parts - Replace defective components |
| Engine uses too much fuel |
| Insufficient throttle opening - Adjust or replace throttle cable |
| Carburetor main jet is improperly adjusted - Adjust the carburetor main jet correctly |
| Spark plug is loose or defective - Spark plug need to be replaced or tightened |
| Burned, worn, or stuck valves - Replace or service valves |
| Sleeve, piston, or rings are damaged - Replace faulty parts |
| Excessive valve clearance - Adjust valve clearance |
| Engine oil consumption is too high |
| Seals or gaskets are wearing excessively - Install new components |
| Damaged valve stems or valve guides - Replace the valves |
| Worn or stuck piston rings - Replace piston rings |
| Cylinder liner or piston is damaged - Inspect piston and liner, fit new components as necessary |
| Blocked breather hose or pipe - Clean or replace |
| Transmission Troubleshooting |
| Gears are hard to shift |
| Stuck or damaged gear shift linkage - Replace or repair the shift linkage |
| Shift forks are worn or damaged - Shift forks need to be replaced |
| Gearshift mechanism is worn out - Repair or replace worn components if required |
| Excessive transmission noise |
| Lack of transmission fluid supply - Add fluid as required |
| Transmission fluid is dirty - Transmission fluid change required |
| Gears or bearings are damaged - Replace gears or bearings |
| Transmission jumps out of gear |
| Shift lever is damaged or installed improperly - Reinstall the lever properly or change it |
| Damaged or worn gears - Change gears |
| Shift forks or shift rods are faulty - Replace damaged forks or rods |
| Drive belt/shaft is incorrectly adjusted or defective - Change belt/shaft or adjust it |
| Improper clutch/brake adjustment or faulty clutch/brake - Change clutch/brake or adjust it |
| Drive pulley is damaged or worn - Replace pulley |
| Mower Deck Troubleshooting |
| Mower vibration is excessive |
| Dirty or worn mower drive sheave - Change or clean sheave |
| Loose or worn drive belt - Adjust belt tension or replace belt |
| Mower blades are not balanced or warped - Change or balance blades |
| Blade bolts are not tightened well - Tighten it fast |
| Constant clogging of discharge chute |
| Fast ground speed - Use a lower speed |
| Grass is too high - Need to set low cutting height |
| Reduced engine speeds - Adjust throttle to full opening |
| Low cutting height - Adjust mower to higher cutting height |
| Drive belt installed improperly - Check drive belt for correct installation |
| Deck clogged with grass clippings - Clean out the mower deck |
| Not sharp blades - Blades need to be sharpened |
| Worn or defective blades - Change the blades |
| High ground speed - Use a slower speed |
| Low cutting height - Must be set to high cutting height |
| Full grass bag - Clean grass bag |
| Bumpy or not smooth lawn - Lawn needs to be leveled |
| Cutting level is too low - Need to set high cutting height |
| Fast ground speed - Select a slower speed |
| Incorrectly leveled mower deck - Adjust mower deck level properly |
| Blades are worn or bent - Replace the blades |
| Low tire pressure - Need to inflate tires |
| Tires are not correctly inflated - Inflate tires correctly |
| Improper mower deck level - Adjust mower deck level properly |
| Excessive blade dullness - Sharpen the blades |
| Damaged or worn blades - Blades need to be replaced |
| Cutting deck is clogged - Inspect and clean cutting deck |
| Deck housing is broken - Rebuild or replace mower deck |
| Bent or loose mower spindle - Replace or repair the spindle |
| Electrical Troubleshooting |
| Battery does not charge |
| Electrical wire connections are loose or corroded - Service or tighten cable connections |
| Defective battery terminal connectors - Install new terminal connectors |
| Worn-out battery - Battery change required |
| Starter motor cranks slow |
| Low battery power - Battery is drained, recharge it |
| Battery is draining quickly - Service or change the battery |
| Corroded battery terminals or disconnected wires - Connect wires properly or change terminals |
| Battery is low or faulty - Recharge or change battery |
| Wiring harness is disconnected or improperly connected - Check wiring harness and connect as required |
| Low battery output voltage - Battery is drained, charge it |
| Incorrectly gapped or worn spark plug - Clean, gap or replace spark plug |
| Faulty solenoid or starter motor - Repair starter or install a new solenoid |
