John Deere E110 Troubleshooting
The

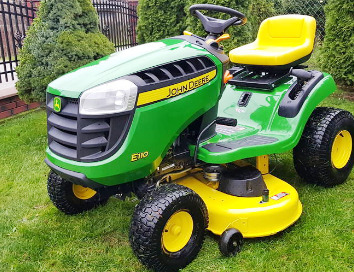

John Deere E110 is a two-wheel drive lawn tractor from E100 series. This model
was manufactured between 2018 and 2020.
The John Deere E110 driveline components: a 32.9 cu.in (540 cc) Briggs
and Stratton 33R877 four-cycle vertical-shaft single cylinder air-cooled
gasoline engine with a maximum power of 19 hp (14.2 kW), and Kanzaki
Tuff Torq belt-driven hydrostatic transmission with infinite forward and
reverse gears. The engine has a fixed main jet carburetor, integral type
fuel pump, and full pressure lubrication system with full-flow oil
filter.
Max. forward speed - 5.5 mph (8.8 km/h), maximum reverse speed - 3.2 mph
(5.1 km/h). The tractor is fitted with 15x6.00-6 front tires and
20x8.00-8 rear tires. The wheel base is 49 in (1240 mm). The John Deere
E110 can be equipped with the following attachments: a 42" mid-mount
2-blade mower deck with 13 cut positions and cutting height of 1-4"
(25-102 mm), 44" front-mount two-stage snowblower, or 46" front blade
with manual lift system.
| Engine Troubleshooting |
| Engine doesn't start or hard to start |
| No fuel in fuel tank - Fill it up |
| Incorrect fuel grade - Change fuel |
| Air in the fuel system - Air bleeding |
| Spark plug wire is disconnected or loose - Inspect spark plug wiring connection, change or repair |
| Damaged spark plug - Install new spark plug |
| Plugged fuel filter - Install new filter |
| Defective safety switch - Replace if required |
| Wrong carburetor adjustment - Adjusting carburetor correctly |
| Low compression - Check and replace worn parts |
| Choke cable is not adjusted properly or worn - Adjust properly or replace the cable |
| Cooling fins are blocked - Wash or clean as required |
| Ignition failure - Inspect ignition system and change faulty parts |
| Stuck or defective choke cable - Service or change the cable |
| Air filter element is plugged - Replace or service air filter |
| Fuel pump is damaged or dirty - Test fuel pump and replace if necessary |
| Engine starts but then stops |
| Spark plug is damaged - Change spark plug as required |
| Dirty or faulty carburetor - Service or repair carburetor |
| Damaged ignition coil - Change ignition coil as required |
| Valve springs are loose or broken - Change valve springs |
| Valves sticking - Valves need to be cleaned |
| Engine oil level is low - Checking oil level and add if necessary |
| Engine overload - Reduce engine load |
| Cooling fins are blocked - Need to clean or wash |
| Carburetor is running lean - Adjust carburetor correctly |
| Ignition timing is improper - Ignition timing needs to be set properly |
| Valve setting is incorrect - Adjust valves as required |
| Low octane fuel - Use proper fuel |
| Engine is overloaded - Reduce load |
| Engine oil insufficient - Add oil to the engine crankcase |
| Low idle speed setting is incorrect - Correct idle settings |
| Fuel pump is damaged or dirty - Service or change fuel pump |
| Main bearings or crankshaft failure - Repair or replace defective parts |
| Valve clearance is improper - Need to adjust valve clearance |
| Worn cylinder bore or piston rings - Change defective components |
| Carburetor is incorrectly adjusted or dirty - Service or correctly adjust carburetor |
| Clogged air filter - Change or clean air filter |
| Dirty or defective fuel pump - Test fuel pump and replace if necessary |
| Ignition system malfunction - Inspect ignition system and change faulty parts |
| Blown cylinder head gasket - Install new cylinder head gasket |
| Stuck or burned valves - Clean or change valves |
| Worn or damaged push rod - Push rod needs to be changed |
| Faulty cylinder block parts - Change defective components |
| Engine uses too much fuel |
| Choke opening is not full - Replace or adjust choke cable |
| Incorrect carburetor main jet adjustment - Adjust the carburetor main jet correctly |
| Faulty or loose spark plug - Tighten or replace spark plug |
| Worn, stuck, or burned valves - Change or clean valves |
| Worn piston, rings, or sleeve - Replace defective components |
| Improper valve clearance - Adjust to proper valve clearance |
| Excessive oil consumption |
| Defective seals or gaskets - New components need to be installed |
| Worn valve stems and valve guides - Valves need to be changed |
| Damaged or seized piston rings - Change piston rings |
| Scuffed piston or cylinder liner - Inspect liner and piston, replace as necessary |
| Clogged breather hose or pipe - Change or clean |
| Hydrostatic Transmission Troubleshooting |
| Excessive hydrostatic transmission noise |
| Speed control pedal linkage is damaged or out of adjustment - Adjust or repair linkage |
| Excessive loading - Load needs to be reduced |
| Low transmission oil level or contaminated oil - Change transmission oil or top up to proper level |
| Defective or worn transmission parts - Check transmission parts for damage or wear and replace if required |
| Corroded or worn shift linkage - Lubricate or change linkage |
| Defective or stuck hydrostatic pump - Repair or change pump |
| Transmission shift control parts are faulty or unadjusted - Adjust correctly or replace |
| Low fluid level - Add fluid to the transmission housing |
| Defective or worn drive sheave - Replace sheave |
| Shift linkage is damaged or unadjusted - Adjust properly or replace linkage |
| Speed control pedal linkage is bent or not adjusted - Change or adjust linkage |
| Broken transmission gaskets or seals - Seals and gaskets need to be replaced |
| Final drive shaft leaks - Shaft seals need to be changed |
| Transmission housing is cracked - Housing needs to be replaced |
| Mower Deck Troubleshooting |
| Mower vibration is excessive |
| Clogged or damaged mower drive sheave - Replace or service sheave |
| Drive belt is defective or loose - Adjust belt tension or change the belt |
| Bent or unbalanced cutting blades - Balance or change blades |
| Blade mounting bolts are loose - Bolts should be tightened |
| Discharge chute keeps clogging |
| Fast ground speed - Need to slow down |
| Long grass - Need to set low cutting height |
| Engine is running at too low speed - Open throttle fully |
| Cutting level is too low - Adjust mower to higher cutting height |
| Incorrect mower drive belt installation - Drive belt must be installed correctly |
| Lawn mower leaving uncut grass |
| Clogged mower deck - Clean mower deck as required |
| Blades are too dull - Blades need to be sharpened |
| Damaged or worn blades - Install new blades |
| High ground speed - Need to slow down |
| Cutting height is too low - Change cutting height adjustment |
| Filled bagger - Empty the bagger |
| Uneven or bumpy lawn - Roll or level the lawn |
| Mower cuts too low - Use a higher cutting height |
| High ground speed - Operate at slower speed |
| Improperly leveled mower deck - Deck needs to be adjusted properly |
| Damaged or bent blades - Change the blades |
| Tires are not correctly inflated - Inflate tires as required |
| Tires are not correctly inflated - Inflate tires as required |
| Deck level is not correct - Deck needs to be adjusted properly |
| Blades are excessively dull - Need a blade sharpening |
| Damaged or worn blades - Install new blades |
| Discharge chute is plugged - Need to clean the mower deck |
| Broken mower deck housing - Repair or change the deck |
| Bent or loose mower spindle - Replace or repair the spindle |
| Electrical Troubleshooting |
| Battery will not charge |
| Electrical cable connections are loose or corroded - Tighten or service connections |
| Electrical terminal connectors are faulty - Terminal connectors need to be changed |
| Battery faulty cell - Replace the battery |
| Battery power is low - Battery is drained, recharge it |
| Battery drains quickly - Service or change the battery |
| Disconnected wiring or bad battery terminals - Check wire connections and change or service terminals |
| Battery is drained or defective - Recharge or change battery |
| Disconnected or improperly connected wiring harness - Inspect battery wiring harness and connect as required |
| Low battery voltage - Charge the battery |
| Improperly gapped or dirty spark plug - Clean, gap or change spark plug |
| Faulty solenoid or starter motor - Replace solenoid or repair starter |
