John Deere E160 Troubleshooting
The

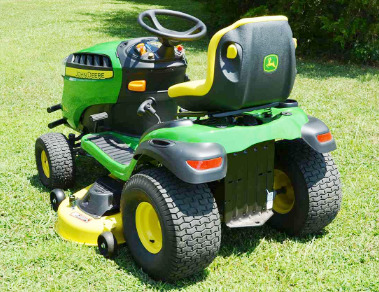

John Deere E160 is a E100 series lawn tractor with cast-iron front axle. This
model was manufactured between 2018 and 2020. The components of John Deere E160
driveline system: Briggs and Stratton 44U877 4-cycle vertical-shaft 2-cylinder
OHV air-cooled gasoline engine and belt-driven hydrostatic transmission with
infinite forward and reverse gears.
A 44.2 cu.in (724 cc) engine has a cylinder bore of 3.12" (79 mm),
piston stroke of 2.89" (73 mm), and rated power of 24 hp (17.9 kW). Max.
forward speed - 5.5 mph (8.8 kph), maximum reverse speed - 3.2 mph (5.1
kph).
The John Deere E160 is equipped with a manual steering system, wet disc
brakes, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The wheelbase
is 49 in (1240 mm). Compatible attachments for the tractor: a 48"
mid-mount 3-blade mower deck with cutting height of 1.0-4.0 in (25-102
mm), 44" front-mount two-stage snowblower with manual lift system, and
46" front-mount blade.
| Engine Troubleshooting |
| Engine won't start or difficult to start |
| Gas tank is empty - Fill it up |
| Wrong grade of gasoline - Change gasoline |
| Air in the fuel system - Air bleeding |
| Spark plug wire is loose or disconnected - Inspect the spark plug wire connection, replace or repair |
| Spark plug is defective - Change spark plug |
| Fuel filter is plugged - Change fuel filter |
| Defective safety switch - Replace if required |
| Carburetor is not adjusted - Check carburetor float adjustment |
| Bad engine compression - Inspect cylinder block and replace worn components |
| Damaged or incorrectly adjusted choke cable - Adjust properly or replace the cable |
| Cooling fins are blocked - Clean and wash as required |
| Ignition system malfunction - Inspect ignition system and change failed components |
| Defective or stuck throttle cable - Service or replace the cable |
| Air filter element is clogged - Change or service air filter |
| Clogged or defective fuel pump - Clean or install new fuel pump |
| Defective spark plug - Change spark plug |
| Dirty or faulty carburetor - Clean or change carburetor |
| Ignition coil is defective - Install a new ignition coil |
| Valve springs are damaged or weak - Replace valve springs |
| Valves are stuck - Valves need to be cleaned |
| Engine oil level is insufficient - Need to add engine oil |
| Excessive engine load - Reduce the load |
| Clogged cooling fins - Clean and wash as required |
| Too lean carburetor mixture - Set the carburetor properly |
| Ignition timing is incorrect - Adjust ignition timing as required |
| Valve setting is incorrect - Set the valves correctly |
| Abnormal engine knocking or noise |
| Stale fuel - Use correct gasoline |
| Engine is running overloaded - Reduce load |
| Engine oil level is low - Check oil level and add oil as required |
| Low idle speed adjustment is incorrect - Need to adjust idle speed |
| Fuel pump is dirty or defective - Clean or replace fuel pump |
| Crankshaft or main bearings wear - Repair or replace defective parts |
| Valve clearance is wrong - Adjust valve clearance |
| Damaged cylinder bore or piston rings - Replace faulty components |
| Carburetor is clogged or incorrectly adjusted - Clean or correctly adjust carburetor |
| Air filter element is plugged - Replace or service air filter |
| Fuel pump is dirty or defective - Check fuel pump and change if required |
| Defective ignition system - Inspect ignition system and change failed components |
| Worn cylinder head gasket - Install new cylinder head gasket |
| Valves are burned or stuck - Service or change valves |
| Bent or worn push rod - Install a new push rod |
| Worn cylinder block components - Replace defective parts |
| Engine using too much gasoline |
| Choke doesn't open well - Adjust or replace choke cable |
| Improper carburetor main jet adjustment - Adjust main jet as required |
| Spark plug is defective or loose - Spark plug need to be tightened or replaced |
| Valves are worn, stuck, or burned - Replace or clean valves |
| Worn sleeve, piston, or rings - Replace faulty components |
| Improper valve clearance - Adjust valve clearance |
| Engine using too much oil |
| Seals or gaskets are defective - Defective components must be replaced |
| Worn valve stems and valve guides - Replace the valves |
| Piston rings are seized or worn - Have piston rings replaced |
| Worn cylinder liner or piston - Check piston and liner, replace as required |
| Plugged breather pipe or hose - Change or service |
| Hydrostatic Transmission Troubleshooting |
| HST transmission noises |
| Bent or unadjusted speed control pedal linkage - Repair or adjust linkage |
| Excessive loading - Load needs to be reduced |
| Oil is dirty or oil level is too low - Change transmission oil or top up to proper level |
| Damaged or worn components of transmission - After disassembling and inspection, change faulty components |
| Shift linkage is corroded or worn - Lubricate or replace linkage |
| Defective or stuck hydrostatic pump - Replace or repair pump |
| Transmission shift control components are worn or unadjusted - Adjust correctly or replace |
| Transmission oil level is low - Check and refill the transmission oil |
| Drive pulley is worn or faulty - Replace pulley |
| Shifting linkage is broken or misadjusted - Replace or adjust linkage |
| Defective or not adjusted speed control pedal linkage - Adjust or repair linkage |
| Broken transmission gaskets or seals - Install new seals or gaskets |
| Final drive shaft leaks - Change shaft seals |
| Transmission housing is cracked - Housing needs to be replaced |
| Mower Deck Troubleshooting |
| Mower vibrates too much |
| Drive pulley of mower deck is damaged or dirty - Replace or service pulley |
| Loose or defective drive belt - Change belt or adjust belt tension |
| Mower blades are not balanced or warped - Balance or change as needed |
| Blade bolts are not tightened well - Tighten bolts as required |
| Discharge chute is constantly plugged |
| High ground speed - Need to slow down |
| Long grass - Must be set to low cutting height |
| Reduced engine speeds - Adjust carburetor to higher rpm |
| Low cutting height - Change cutting height adjustment |
| Improper drive belt installation - Install drive belt correctly |
| Mower leaving random uncut of grass |
| Deck is plugged with grass - Inspect and clean cutting deck |
| Not sharp blades - Sharpen the blades |
| Blades are worn or damaged - Blades need to be replaced |
| Ground speed is too fast - Select a slower speed |
| Cutting height is too low - Adjust mower to higher cutting height |
| Full bagger - Remove grass from bagger |
| Bumpy or not smooth lawn - Lawn needs to be leveled |
| Mower cuts too low - Adjust mower to higher cutting height |
| Fast ground speed - Use a lower speed |
| Mower deck is not leveled properly - Level the deck correctly |
| Damaged or bent blades - Replace the blades |
| Tires are not properly inflated - Need to inflate tires |
| Low tire pressure - Correct tire pressure |
| Deck is not leveled correctly - Deck should be adjusted correctly |
| Blades are excessively dull - Need to sharpen the blades |
| Blades are worn or damaged - Blades need to be replaced |
| Discharge chute is plugged - Clean mower deck as required |
| Broken mower deck shell - Replace or rebuild mower deck |
| Bent or loose mower spindle - Spindle needs to be repaired or replaced |
| Electrical Troubleshooting |
| Battery does not charge |
| Loose or corroded electrical wiring connections - Tighten or service connections |
| Faulty battery terminal connectors - Install new terminal connectors |
| Battery bad cell - Battery change required |
| Starter motor cranks slow |
| Low battery power - Low battery charging, charge as required |
| Battery drains quickly - Service or change the battery |
| Terminals are faulty or battery cables are disconnected - Connect wiring correctly or install new terminals |
| Battery is drained or defective - Battery needs to be recharged or replaced |
| Battery cables are disconnected or incorrectly connected - Check cables and connect as needed |
| Low battery power - Battery is drained, charge it |
| Spark plug faulty or incorrectly gapped - Replace or clean and gap |
| Solenoid or starter motor is faulty - Starter/solenoid needs to be replaced |
