John Deere E180 Troubleshooting
The

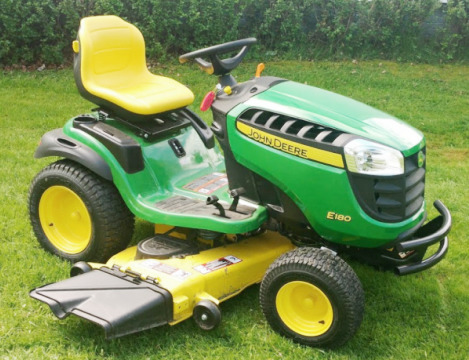

John Deere E180 is a lawn tractor with Edge cutting system. This model was
manufactured between 2018 and 2020. The components of John Deere E180 powerline
system: 44.2 cu.in (724 cc) Briggs and Stratton 44S977 4-cycle vertical-shaft
V-twin cylinder OHV air-cooled gasoline engine with a rated power of 25 hp (18.5
kW), and Tuff Torq K46 belt-driven hydrostatic transmission with infinite
forward and reverse gears.
The engine has a float-feed type carburetor, full pressure lubrication
with oil filter, and electronic spark ignition system. The maximum
forward speed - 5.5 mph (8.8 km/h), maximum reverse speed - 3.2 mph (5.1
km/h). The John Deere E180 is equipped with a manual steering system,
internal wet disc brakes, 15x6.50-8 front tires, and 22x9.50-12 rear
tires.
The wheelbase is 49" (1240 mm). The tractor is compatible with a 54"
mid-mount 3-blade mower deck with cutting height of 1.0-4.0" (25-102
mm), 13 cut positions, and manual lifting, 46" front blade, and 44"
front-mount dual-stage snowblower.
| Engine Troubleshooting |
| Engine won't start or starts hard |
| No gasoline in tank - Add gasoline |
| Low-quality gasoline - Use quality gasoline |
| Air in the fuel system - Air bleeding |
| Disconnected or loose spark plug wire - Check the spark plug wire connection, repair or replace |
| Spark plug is damaged - Change spark plug |
| Fuel filter is dirty - Fuel filter needs to be replaced |
| Defective safety switch - Replace if required |
| Carburetor malfunction - Check and repair as required |
| Bad compression - Check and change damaged parts |
| Incorrectly adjusted or damaged throttle cable - Replace cable or adjust properly |
| Clogged cooling fins - Clean and wash as required |
| Defective ignition system - Inspect ignition system and change failed components |
| Throttle cable is stuck or defective - Service or change the cable |
| Air filter is dirty - Change or clean air filter |
| Fuel pump is defective or dirty - Check fuel pump and change if required |
| Spark plug is faulty - Replace spark plug |
| Clogged or defective carburetor - Replace or service carburetor |
| Ignition coil is faulty - Replace ignition coil as necessary |
| Valve springs are weak or broken - New valve springs need to be installed |
| Stuck valves - Clean the valves |
| Not enough engine oil - Add oil to the engine crankcase |
| Excessive engine load - Reduce load |
| Plugged cooling fins - Clean and wash as required |
| Too lean fuel mixture in carburetor - Set the carburetor correctly |
| Bad ignition timing - Set the ignition timing properly |
| Valve setting is improper - Adjust valves as required |
| Stale gasoline - Use proper fuel |
| Engine overload - Reduce the load |
| Insufficient engine oil - Check oil level and add oil as required |
| Incorrect low idle setting - Adjust the low idle speed |
| Fuel pump is damaged or dirty - Inspect fuel pump and change as required |
| Main bearings or crankshaft failure - Change defective components as required |
| Valve clearance is incorrect - Adjust valve clearance |
| Cylinder bore or piston rings are damaged - Change defective components |
| Improperly or clogged carburetor - Clean or correctly adjust carburetor |
| Plugged air filter - Clean or change air filter |
| Dirty or damaged fuel pump - Service or change fuel pump |
| Ignition system problems - Inspect ignition system and change failed components |
| Cylinder head gasket is damaged - Cylinder-head gasket replacement required |
| Valves are burned or stuck - Replace or service valves |
| Bent or worn push rod - Push rod should be replaced |
| Damaged cylinder block parts - Defective parts need to be replaced |
| Excessive fuel consumption |
| Throttle is not fully open - Change or adjust throttle cable |
| Improper carburetor main jet adjustment - Adjust it properly |
| Spark plug is loose or faulty - Spark plug need to be tightened or replaced |
| Valves are stuck, burned, or worn - Change or service valves |
| Worn piston, rings, or sleeve - Replace faulty components |
| Valve clearance is improper - Need to adjust valve clearance |
| Excessive oil consumption |
| Gaskets or seals can be faulty - Replace worn parts to avoid leaks |
| Valve stems or guides are damaged - Replace defective valves |
| Piston rings are stuck or worn - Install new piston rings |
| Damaged cylinder liner or piston - Inspect piston and liner, change as required |
| Blocked breather hose or pipe - Clean or replace |
| Hydrostatic Transmission Troubleshooting |
| HST transmission makes excessive noise |
| Speed control linkage is defective or unadjusted - Adjust or change linkage |
| Transmission overload - Reduce transmission load |
| Low transmission oil level or contaminated oil - Add oil to the correct level or fill the transmission with fresh oil |
| Worn or defective parts of transmission - Check transmission parts for defect or damage and change if necessary |
| Shift linkage is rusty or worn - Lubricate or replace the linkage |
| Faulty or blocked hydrostatic pump - Repair or replace pump |
| Faulty or misadjusted transmission shift control parts - Change or adjust correctly |
| Transmission fluid insufficient - Add fluid to the transmission housing |
| Worn or damaged drive sheave - Install a new sheave |
| Shifting linkage is broken or misadjusted - Adjust properly or replace linkage |
| Speed control linkage is worn or unadjusted - Adjust or change linkage |
| Worn transmission seals or gaskets - Change seals or gaskets |
| Leaking final drive shaft - Shaft seals need to be changed |
| Cracked transmission housing - Replace housing or transmission assembly |
| Mower Deck Troubleshooting |
| Mower vibrates excessively |
| Worn or dirty mower drive pulley - Clean or replace pulley |
| Loose or damaged drive belt - Adjust belt tension or change the belt |
| Mower blades are not balanced or warped - Change or balance blades |
| Blade bolts are not tightened well - Tighten bolts as required |
| Discharge chute is regularly plugged |
| Ground speed is too fast - Operate at slower speed |
| Grass is too high - Use a lower cutting height |
| Engine runs at low revs - Choke is not fully opening |
| Cutting level is too low - Use correct cutting height |
| Mower drive belt installation is improper - Check drive belt for correct installation |
| Grass patches are not cut |
| Cutting deck clogging - Mower deck needs to be cleaned |
| Blades are not sharp - Sharpen the blades |
| Worn or damaged blades - Install new blades |
| Fast ground speed - Use a slower speed |
| Cutting level is too low - Change cutting height adjustment |
| Full grass bag - Empty the grass bag |
| Blades are scalping the grass |
| Bumpy or not smooth lawn - Lawn needs to be leveled |
| Low cutting height - Adjust mower to higher cutting height |
| High mowing speed - Need to slow down |
| Deck is not leveled correctly - Adjust mower deck level properly |
| Worn or bent blades - Replace the blades |
| Tires are not correctly inflated - Need to inflate tires |
| Mower deck to cut unevenly |
| Low tire inflation - Correct tire pressure |
| Mower deck is not leveled properly - Adjust the level of mower deck correctly |
| Excessive blade dullness - Need to sharpen the blades |
| Damaged or worn blades - Blades must be changed |
| Cutting deck is clogged - Mower deck needs to be cleaned |
| Broken mower deck housing - Replace or repair the deck |
| Loose or faulty mower spindle - Spindle needs to be repaired or replaced |
| Electrical Troubleshooting |
| Battery does not charge |
| Corroded or loose electrical wire connections - Clean or tighten connections |
| Faulty battery terminal clamps - Change terminal clamps |
| Defective battery - Battery change required |
| Starter motor cranks slow |
| Low battery output voltage - Battery is drained, charge it |
| Battery does not hold charge - Battery needs to be serviced or replaced |
| Battery terminals are corroded or wires are disconnected - Connect wires correctly or change terminals |
| Battery is drained or worn - Change or recharge battery |
| Battery wiring is disconnected or improperly connected - Inspect wiring and connect as required |
| Low battery output voltage - Battery is drained, recharge it |
| Spark plug dirty or improperly gapped - Clean, gap or change spark plug |
| Solenoid or starter motor failure - Repair starter or change solenoid |
