Kubota G1800 Maintenance

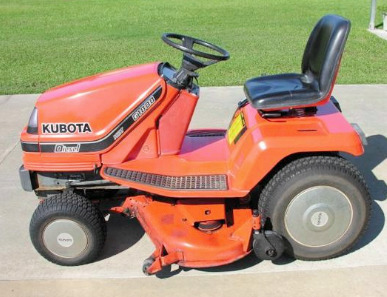

The Kubota G1800 is a G-series garden tractor. This model was manufactured from 1989 to 2000. The G1800 driveline system components: Kubota D662 four-cycle vertical three cylinder diesel engine and shaft-driven hydrostatic transmission.

The max. forward speed - 8.1 mph (13 kph), a maximum reverse speed - 3.7 mph (6 kph). A 40.1 cu.in (0.66 L) engine output rating is 19.2 hp (14.3 kW) at 3800 rev/min. The compression ratio rating is 23:1. The Kubota G1800 garden tractor was equipped with 16x6.50-8 front tires and 23x8.50-12 rear tires.

The wheelbase is 50 inches (1270 mm). The tractor is compatible with the following attachments: a 48" mid-mount mower deck with cutting height of 1.4-3.5 in (35-80 mm), 54" mid-mount mower deck with cutting height of 1.5-4.0 in (38-102 mm), and 48" front blade.

Refill Capacities
Engine oil capacity, qts (L) 3.4 (3.2)
Engine coolant capacity, qts (L) 3.3 (3.1)
Transmission fluid capacity, qts (L) 6.1 (5.8)
Fuel tank capacity, gal (L) 5.0 (19.0)

Recommended Oil and Fluid
Engine oil type SAE 30, SAE 10W-30. API Service category CC, CD
Engine coolant type Kubota Antifreeze/Coolant
Transmission fluid type Kubota UDT Fluid

Service Intervals
Check fuel level Every 10 hours
Check engine oil level Every 10 hours
Check engine coolant Every 10 hours
Check and tighten loose hardware Every 50 hours
Check and adjust fan belt Every 50 hours
Check and adjust front PTO belt Every 50 hours
Check tire pressure and brakes Every 50 hours
Clean engine air filter element Every 50 hours
Check and clean battery terminals Every 100 hours
Clean radiator fins Every 100 hours
Lubricate front wheels Every 100 hours
Change engine oil Every 100 hours
Check engine fuel filter Every 100 hours
Change mower gear box oil Every 150 hours
Replace engine oil filter Every 200 hours
Change transmission fluid Every 300 hours
Replace HST transmission filter Every 300 hours
Clean transmission strainer Every 300 hours
Charge battery Every 300 hours
Check engine idle speeds Every 300 hours
Replace engine fuel filter Every 500 hours
Check and adjust valve clearance Every 500 hours
Replace air filter element Every 600 hours
Flush cooling system and add new coolant Every 1000 hours

Replacement Parts
Engine oil filter part number HH150-32430, HH152-32432
Engine fuel filter part number 12581-43012 (Element)
Engine air filter part number 15852-11082 (Element)
Hydraulic suction filter part number 66021-36390
Hydrostatic transmission filter part number HH660-36060
Mower PTO belt part number H6610-25000
Drive belt part number 15881-97010
