Kubota G4200 Troubleshooting
The

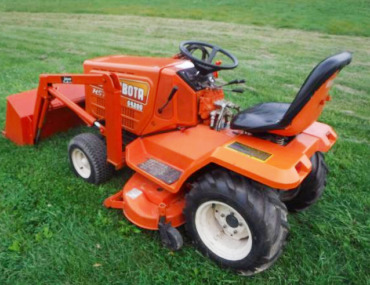

Kubota G4200 is a 2WD garden tractor from G-series. This model was manufactured
between 1984 and 1990. The Kubota G4200 tractor is powered by 25.9 cubic inches
(0.43 L) Kubota Z430 4 cycle vertical 2-cylinder vertical water-cooled diesel
engine with a maximum power of 12 Hp (8.9 kW) at 3200 rev/min.
The Kubota G4200 is fitted with two types of transmission. Type 1:
Mechanical transmission with 3 forward and 1 reverse gears. Type 2:
3-range hydrostatic transmission with infinite forward and reverse
gears. The maximum forward speed - 6.5 mph (10.5 kph), max. reverse
speed - 3.2 mph (5.1 kph).
The Kubota G4200 is equipped with 16x6.50-8 front tyres and 23x10.50-12
rear tyres. The wheelbase is 47.2 in (1190 mm). Compatible attachments
for the garden tractor: 44", 48" mid-mount 3-blade mower decks with
cutting height of 1.4-3.5 in (36-90 mm), 38" front-mount G2538A
snowblower, and 46" front-mount G2003 blade.
| Diesel Engine Troubleshooting |
| Engine hard starting or not starting |
| Fuel filter is clogged - Change filter element |
| Closed fuel cock - Open fuel on-off cock to inject fuel |
| Air in fuel system - Air-bleed fuel system |
| Clogged fuel injectors - Service or change fuel injectors |
| Defective fuel injection pump - Rebuild or change fuel pump |
| Engine has low compression - Check cylinder block and change worn components |
| Diesel shuts off during operation |
| Engine is not preheated - Warm up the engine |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Uneven fuel injections - Repair or adjustment |
| Plugged fuel filter - Install new filter element |
| Dirty or damaged injectors - Inspect fuel injectors and replace if necessary |
| Engine starts but immediately stops |
| Incorrect setting of fuel injection pump timing - Check and correct adjustments |
| Fuel filter plugging - Filter maintenance required |
| Fuel injector nozzles are damaged - Replace fuel injector nozzles |
| Fuel injection pump damage - Change or repair the pump |
| Air cleaner element is clogged - Replace or clean the air cleaner element |
| Incorrectly set low idle speed - Correct the settings |
| Damaged fuel injection pump - Repair or replace injection pump |
| Dirty or defective injector nozzles - Inspect injector nozzles and change if required |
| The valve clearance is incorrect - Have it adjusted |
| Insufficient coolant - Top up coolant fluid. Inspect the system for leaks |
| Cooling system is clogged or cooling parts are defective - Change faulty components or service cooling system |
| Engine oil level is low - Need to add engine oil |
| Worn fan belt or incorrect belt tension - Adjust correctly or replace the belt |
| Defective or wrong type of thermostat - Install new thermostat |
| Diesel engine loses power |
| Clogged fuel injectors - Inspect fuel injectors and replace if necessary |
| Incorrect fuel injection pressure - Correct the pressure settings |
| Clogged air filter element - Air filter maintenance required |
| Dirty oil filter - Replace or clean engine oil filter element |
| Engine overloaded - Load reducing is recommended |
| Excessive valve clearance - Adjust valve clearance |
| Low idle speed setting is not correct - Adjust low idle speed |
| Dirt in the hoses or pipes - Service fuel hoses and pipes |
| Engine compression too low: Inlet or outlet valves are defective - Valve replacement required |
| Abnormal engine knocking or noise |
| Fuel injection pump out of timing - Adjust injection timing |
| Fuel injector nozzles are damaged or dirty - Change injector nozzles |
| Insufficient engine oil - Need to add engine oil |
| Engine is not warmed up to required temperature - Warm up the engine as required |
| Main bearings or crankshaft wear - Change or repair worn components |
| Piston rings are worn or broken - Piston rings need to be replaced |
| Loose flywheel screws - Check the flywheel screws and tighten as required |
| Excessive engine oil consumption |
| Oil leaking: Defective seals or gaskets - Install new components |
| Incorrect oil viscosity - Use proper viscosity oil |
| Piston rings are stuck or broken - Piston rings replacement required |
| Worn valve stems and valve guides - Replace defective valves |
| Cylinder liners or pistons are scored - Check liners and pistons, install new components as required |
| Transmission Troubleshooting |
| Hard shifting |
| Stuck or damaged gear shift linkage - Replace or repair the shift linkage |
| Shift forks are worn or damaged - Install new shift forks |
| Gearshift mechanism malfunctions - Identify and repair faults |
| Fluid level is low - Check and refill the transmission fluid |
| Oil contamination - Change transmission oil |
| Worn bearings or damaged gears - Change bearings or gears |
| Transmission jumping out of gear |
| Incorrectly installed or bent shift lever - Install the lever correctly or replace it |
| Damaged or worn gears - Replace defective gears |
| Worn shift forks or shift rods - Change damaged forks or rods |
| Drive belt/shaft is improperly adjusted or worn - Adjust or replace belt/shaft |
| Improper brake/clutch adjustment or damaged brake/clutch - Replace brake/clutch or adjust it |
| Drive sheave is damaged or worn - Change sheave |
| Hydrostatic Transmission Troubleshooting |
| HST transmission makes noise |
| Speed control pedal linkage is bent or not adjusted - Change or adjust linkage |
| Excessive transmission load - Load needs to be reduced |
| Fluid is contaminated or fluid level is insufficient - Top up to proper level or change transmission fluid |
| Worn or defective parts of hydrostatic transmission - After disassembly and inspection, replace defective parts |
| Shift linkage is loose or broken - Service or change the linkage |
| Hydrostatic pump is stuck or worn - Repair or change pump |
| Transmission shift control parts are faulty or unadjusted - Change or adjust correctly |
| Low oil level - Fill up the transmission oil |
| Worn or damaged drive sheave - Change sheave |
| Unadjusted or broken shift linkage - Replace or adjust linkage |
| Defective or not adjusted speed control pedal linkage - Adjust or replace linkage |
| Broken transmission gaskets or seals - Install new seals or gaskets |
| Final drive shaft is leaking - Install new shaft seals |
| Transmission housing is cracked - Install a new transmission housing |
| Mower Deck Troubleshooting |
| Excessive mower vibration |
| Dirty or worn mower drive sheave - Replace or clean sheave |
| Loose or worn drive belt - Adjust belt tension or install a new belt |
| Cutting blades are not balanced or warped - Balance or change as needed |
| Blade mounting bolts are loose - Tighten bolts as required |
| Constant clogging of discharge chute |
| Mowing speed is too high - Use a lower speed |
| Grass is too long - Adjust mower to lower cutting height |
| Engine rpm is too low - Open choke fully |
| Cutting level is too low - Use a higher cutting height |
| Improper drive belt installation - Install drive belt as required |
| Mower leaving random uncut of grass |
| Deck clogged with grass clippings - Mower deck needs to be cleaned |
| Blades are not sharp - Blades need to be sharpened |
| Damaged or worn blades - Change the blades |
| Fast mowing speed - Select a lower speed |
| Low cutting height - Adjust mower to higher cutting height |
| Filled grass bag - Clean grass bag |
| Bumpy or unleveled lawn - Roll or level the lawn |
| Cutting level is too low - Use a higher cutting height |
| Fast mowing speed - Select a slower speed |
| Deck level is not correct - Level the deck correctly |
| Bent or worn blades - Change the blades |
| Tires are not properly inflated - Need to inflate tires |
| Low tire pressure - Need to inflate tires |
| Improperly leveled mower deck - Level the deck correctly |
| Excessive blade dullness - Sharpen the blades |
| Blades are defective or worn - Replace the blades |
| Discharge chute is plugged - Mower deck needs to be cleaned |
| Broken mower deck shell - Repair or replace the deck |
| Loose or faulty mower spindle - Install new spindle or repair it |
| Electrical Troubleshooting |
| Battery does not charge |
| Corroded or loose cable connections - Tighten or clean connections |
| Defective battery terminal clamps - Install new terminal clamps |
| Bad cell in battery - Replace the battery |
| Battery power is low - Charge the battery |
| Battery drains quickly - Battery needs to be serviced or replaced |
| Battery terminals are corroded or wires are disconnected - Connect cables correctly or replace terminals |
| Battery is discharged or defective - Charge or change the battery |
| Wiring is incorrectly connected or disconnected - Inspect wiring and connect correctly |
| Battery power is low - Battery is drained, recharge it |
| Spark plug gapped improperly or faulty - Clean, gap or change spark plug |
| Starter motor or solenoid failing - Replace solenoid or repair starter |
