Kubota GR2100 Troubleshooting
The

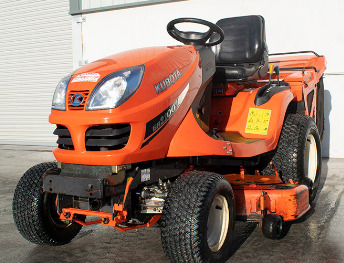

Kubota GR2100 is a four-wheel drive garden tractor from GR-series. This model
was manufactured between 2005 to 2007. The Kubota GR2100 driveline components:
Kubota D782 4 cycle vertical 3-cylinder water-cooled diesel engine and
hydrostatic transmission with infinite forward and reverse gears.
A 47.7 cubic inches (0.78 L) engine has a cylinder bore of 2.64" (67
mm), piston stroke of 2.9" (73.6 mm) and rated power of 21 hp (15.7 kW)
at 3000 rpm. The maximum forward speed - 6.2 mph (10 km/h), max. reverse
speed - 3.1 mph (5 km/h).
The Kubota GR2100 is equipped with a hydrostatic power steering,
internal expanding brakes, 16x6.50-8 front tires and 23x10.5-12 rear
tires. The wheel base is 50.4 in (1280 mm). The tractor is compatible
with the following attachments: a 54" mid-mount mower deck with cutting
height of 1.0-4.0 in (25-102 mm), 48" front-mount blade, and 46"
front-mount snowblower with hydraulic lift system.
| Diesel Engine Troubleshooting |
| Engine will not start or difficult to start |
| Fuel filter clogging - Filter maintenance required |
| The fuel shut-off valve is closed - Open fuel shut-off valve |
| Air in fuel pipes - Bleed fuel pipes |
| Fuel injectors are damaged or dirty - Change fuel injectors |
| Fuel injection pump is broken - Rebuild or install a new injection pump |
| Bad cylinder compression - Check and replace worn parts |
| Diesel stalls while running |
| Engine is not preheated - Warm up the engine |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Bad fuel injection - Check and adjust |
| Dirty fuel filter element - Service or replace the filter |
| Fuel injectors are defective or dirty - Test fuel injectors and change if necessary |
| Diesel engine stalls after starting |
| Incorrect setting of fuel injection pump timing - Check and correct settings |
| Fuel filter is clogged - Filter maintenance required |
| Fuel injector nozzles are defective or dirty - Check and change nozzles as required |
| Fuel injection pump is broken - Rebuild or install a new injection pump |
| Clogged air cleaner - Replace or clean the air cleaner element |
| Engine shuts off while idling |
| Incorrectly set low idle speed - Correct the settings |
| Fuel injection pump malfunction - Repair or install new pump |
| Fuel injector nozzles are clogged or faulty - Inspect injector nozzles and change if required |
| Excessive valve clearance - Need to adjust valve clearance |
| Not enough coolant - Refill to the correct level. Check system for leaks |
| Cooling system parts are damaged or system is dirty - Service the cooling system or change faulty parts |
| Lack of engine oil - Fill up the oil to required level |
| Broken fan belt or incorrect belt tension - Adjust belt tension properly or change it |
| Defective thermostat - Check thermostat, replace if necessary |
| Faulty or dirty injectors - Service or change fuel injectors |
| Uneven fuel injection pressure - Repair or replace injection pump |
| Dirty air filter element - Service or replace the air filter |
| Oil filter element clogging - Change or service engine oil filter |
| Engine is under excessive load - Load reducing is recommended |
| The valve clearance is incorrect - Adjustment procedure required |
| Incorrect low idle speed adjustment - Adjustment required |
| Dirty fuel pipes or hoses - Fuel pipes and hoses need to be cleaned |
| Poor engine compression: Valves are defective or worn - Install new valves |
| Incorrectly set fuel injection pump timing - Adjust injection timing |
| Fuel injector nozzles are clogged or faulty - Test injector nozzles and replace as required |
| Not enough engine oil - Need to add engine oil |
| Engine not warmed up - Warm up engine as required |
| Crankshaft or main bearings are worn out - Repair or replace defective parts |
| Piston rings are damaged or broken - Piston rings replacement required |
| Flywheel bolts are loose - Bolts need to be tightened |
| External oil leaks: Gaskets or seals can be faulty - Worn parts need to be replaced |
| Oil viscosity is wrong - Use correct viscosity oil |
| Piston rings are stuck or worn - Piston rings replacement required |
| Valve guides or stems are damaged - Valves replacement required |
| Pistons or cylinder liners are scored - Inspect pistons and liners, replace as required |
| Hydrostatic Transmission Troubleshooting |
| Hydrostatic transmission is excessively noisy |
| Speed control linkage is defective or unadjusted - Change or adjust linkage |
| Excessive transmission load - Load needs to be reduced |
| Transmission fluid is dirty or fluid level is too low - Add fluid to correct level or fill the transmission with fresh fluid |
| Transmission components are damaged or worn - After disassembling and inspection, change faulty components |
| Shift linkage is damaged or loose - Replace or service the linkage |
| Faulty or blocked hydrostatic pump - Replace or repair pump |
| Transmission shift control parts are faulty or unadjusted - Adjust correctly or replace |
| Transmission fluid level is low - Need to add transmission fluid |
| Drive pulley is defective or worn - Replace pulley |
| Shifting linkage is misadjusted or broken - Change or adjust linkage |
| Speed control pedal linkage is bent or not adjusted - Adjust or install new linkage |
| Damaged transmission seals or gaskets - Replace seals or gaskets |
| Leaking final drive shaft - Shaft seals need to be changed |
| Transmission case is cracked - Install a new transmission case |
| Mower Deck Troubleshooting |
| Mower vibrates too much |
| Damaged or clogged mower drive pulley - Replace or clean pulley |
| Drive belt is damaged or loose - Belt needs to be adjusted or replaced |
| Unbalanced or warped cutting blades - Balance blades or replace it |
| Loose blade bolts tightening - Tighten bolts as required |
| Discharge chute keeps clogging |
| High ground speed - Select a slower speed |
| Tall grass - Use a lower cutting height |
| Reduced engine speeds - Open choke fully |
| Cutting level is too low - Adjust mower to higher cutting height |
| Mower deck drive belt installed incorrectly - Check drive belt for correct installation |
| Cutting deck is clogged - Clean mower deck as required |
| Not sharp blades - Sharpen the blades |
| Defective or worn blades - Change the blades |
| Fast mowing speed - Use a lower speed |
| Cutting level is too low - Change cutting height adjustment |
| Full bagger - Empty the bagger |
| Bumpy or not smooth lawn - Roll or level the lawn |
| Cutting level is too low - Need to set high cutting height |
| Ground speed is too fast - Select a lower speed |
| Deck level is not correct - Level the deck properly |
| Worn or bent blades - Install new blades |
| Tire pressure is too low - Inflate tires correctly |
| Incorrect tire pressure - Check and inflate the tires |
| Improper mower deck level - Level the deck properly |
| Excessive blade dullness - Blades need to be sharpened |
| Bent or worn blades - Install new blades |
| Deck clogged with grass clippings - Inspect and clean cutting deck |
| Deck housing is damaged - Rebuild or replace mower deck |
| Mower spindle is bent or loose - Spindle needs to be repaired or replaced |
| Electrical Troubleshooting |
| Battery cannot be charged |
| Electrical wire connections are loose or corroded - Clean or tighten connections |
| Defective battery terminal clamps - Change terminal clamps |
| Battery is worn - Install a new battery |
| Low battery capacity - Battery is drained, recharge it |
| Battery won’t hold charge - Service battery or replace it |
| Wires are disconnected or battery terminals are corroded - Connect wires correctly or change terminals |
| Battery is drained or worn - Charge or change the battery |
| Wiring harness is disconnected or improperly connected - Check wiring harness and connect as required |
| Battery voltage is low - Recharge the battery |
| Spark plug dirty or improperly gapped - Clean and gap or replace |
| Defective solenoid or starter motor - Starter/solenoid should be replaced |
