Kubota GR2110 Troubleshooting
The

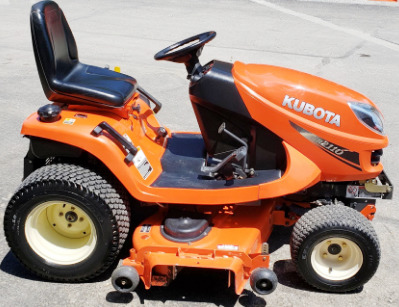

Kubota GR2110 is a four-wheel drive garden tractor. This model was manufactured
from 2008 to 2009. The Kubota GR2110 driveline components: Kubota D782 4 cycle
three-cylinder water-cooled diesel engine with a rated power of 21 hp (15.7 kW),
and hydrostatic transmission with infinite forward and reverse gears.
The engine has a Bosch MD fuel Injection pump, mechanical governor, and
forced lubrication by trochoid pump. Max. forward speed - 6.2 mph (10
kph), maximum reverse speed - 3.1 mph (5 kph).
The Kubota GR2110 is equipped with a hydrostatic power steering with
glide steer, internal expanding brakes, 16x7.50-8 front tires, and
23x10.50-12 rear tires. The wheel base is 50.4 inches (1280 mm). The
garden tractor is compatible with 48", 54" mid-mount 3-blade mower decks
with cutting height of 1.0-4.0 in (25-101) and hydraulic lift system.
| Diesel Engine Troubleshooting |
| Engine will not start or hard to start |
| Plugged fuel filter - Clean or change the filter |
| Closed fuel cock - Open fuel on-off cock to inject fuel |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Dirty or damaged injectors - Inspect fuel injectors and replace if necessary |
| Fuel injection pump is faulty - Repair or install a new fuel pump |
| Engine has low compression - Check and replace worn parts |
| Diesel shuts off during operation |
| Low coolant temperature - Warm up engine as required |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Improper fuel injection - Fuel injection settings required |
| Fuel filter is clogged - Clean the filter element |
| Dirty or damaged injectors - Change fuel injectors |
| Engine stops after starting |
| Unadjusted fuel injection pump timing - Check the fuel injection pump timing setting |
| Fuel filter plugging - Install new filter element |
| Damaged or clogged injector nozzles - Check and change nozzles as required |
| Fuel injection pump malfunction - Install a new pump or rebuild |
| Air cleaner is dirty - Replace or service air cleaner element |
| Incorrectly adjusted low idle speed - Correct low idle adjustment |
| Fuel injection pump is damaged - Repair or replace injection pump |
| Damaged or clogged injector nozzles - Check and change nozzles as required |
| Improper valve clearance - Correct valve clearance needs to be set |
| Engine coolant is insufficient - Fill cooling system to proper level. Check for leaks or other malfunctions |
| Cooling system is dirty or cooling parts are failed - Flush cooling system or replace faulty parts |
| Engine oil level is insufficient - Check and refill engine oil |
| Fan belt is damaged or belt tension is incorrect - Adjust as required or replace belt |
| Defective or wrong type of thermostat - Check and change if necessary |
| Engine power is insufficient |
| Fuel injectors are defective or dirty - Test fuel injectors and change if necessary |
| Incorrect fuel injection pressure - Check the fuel injection pressure and adjust if necessary |
| Clogged air filter element - Change or replace air filter element |
| Oil filter clogging - Change or service engine oil filter |
| Engine overload - Reduce engine load |
| The valve clearance is not adjusted - Adjust to proper valve clearance |
| Low idle speed setting is not correct - Adjust low idle speed |
| Clogged fuel pipes or hoses - Clean fuel system pipes and hoses |
| Poor engine compression: Valves are faulty or leaking - Change the valves |
| Abnormal engine noise or knocking |
| Incorrectly set fuel injection pump timing - Repair or replace fuel injection pump |
| Clogged or damaged injector nozzles - Inspect injector nozzles and change if required |
| Not enough engine oil - Checking oil level and add if necessary |
| Low coolant temperature - Normalize the temperature by warming up the engine |
| Main bearings or crankshaft wear - Need to install new components |
| Broken or worn piston rings - Piston rings replacement required |
| Loose flywheel bolts - Check flywheel bolts and tighten properly |
| Excessive engine oil consumption |
| External oil leaks: Gaskets or seals are excessively worn - Worn parts need to be replaced |
| Oil viscosity is wrong - Fill up with the proper oil viscosity |
| Piston rings are stuck or broken - Replace piston rings |
| Damaged valve guides or valve stems - Replace defective valves |
| Cylinder liners or pistons are worn - Inspect pistons and liners, replace as required |
| Hydrostatic Transmission Troubleshooting |
| HST transmission is making noise |
| Worn or out of adjustment speed control linkage - Repair or adjust linkage |
| Excessive loading - Load needs to be reduced |
| Fluid is contaminated or fluid level is insufficient - Fill to required level or change the fluid |
| Damaged or worn components of hydrostatic transmission - Replace or repair defective components |
| Shift linkage is loose or broken - Service or change the linkage |
| Hydrostatic pump is defective or blocked - Change or repair pump |
| Misadjusted or faulty transmission shift control components - Adjust properly or change |
| Lack of transmission oil supply - Need to add transmission oil |
| Drive pulley is defective or worn - Install a new pulley |
| Faulty or unadjusted shifting linkage - Adjust properly or replace linkage |
| Worn or out of adjustment speed control linkage - Adjust or change linkage |
| Damaged transmission seals or gaskets - Change gaskets or seals |
| Final drive shaft leaks - Shaft seals need to be changed |
| Transmission housing is cracked - Housing needs to be replaced |
| Mower Deck Troubleshooting |
| Mower vibrates too much |
| Drive sheave of mower deck is dirty or worn - Service or change sheave |
| Drive belt is loose or defective - Adjust belt tension or replace belt |
| Mower blades are unbalanced or bent - Balance blades or replace it |
| Blade mounting bolts are loose - Tighten bolts as required |
| Discharge chute is regularly plugged |
| Fast ground speed - Need to slow down |
| Grass is too long - Use a lower cutting height |
| Engine is running at too low speed - Adjust throttle to full opening |
| Cutting height is too low - Change cutting height adjustment |
| Drive belt installed improperly - Install drive belt as required |
| Deck clogged with grass clippings - Need to clean the mower deck |
| Blades are too dull - Need to sharpen the blades |
| Blades are worn or damaged - Blades must be changed |
| High ground speed - Select a lower speed |
| Mower deck set to low cutting - Need to set high cutting height |
| Bagger is full - Remove grass from bagger |
| Lawn is not level or bumpy - Level the lawn |
| Cutting height is too low - Change cutting height adjustment |
| High mowing speed - Use a slower speed |
| Deck level is not correct - Deck needs to be adjusted properly |
| Blades are bent or worn - Blades need to be replaced |
| Low tire inflation - Correct tire pressure |
| Low tire pressure - Check and inflate the tires |
| Improper mower deck level - Deck needs to be adjusted properly |
| Blades are too dull - Sharpen the blades |
| Bent or worn blades - Blades must be changed |
| Clogged mower deck - Mower deck needs to be cleaned |
| Deck housing is broken - Replace or repair the deck |
| Loose or faulty mower spindle - Change or repair the spindle |
| Electrical Troubleshooting |
| Battery will not charge |
| Wiring connections are corroded or loose - Clean or tighten connections |
| Battery terminal clamps are defective - Install new terminal clamps |
| Worn-out battery - Battery change required |
| Low battery output - Low battery charging, charge as required |
| Battery is not holding charge - Service or replace the battery |
| Disconnected wiring or bad battery terminals - Check cables and clean or change terminals |
| Battery is discharged or worn - Recharge or change battery |
| Wiring is improperly connected or disconnected - Check wiring and connect properly |
| Low battery capacity - Battery is drained, charge it |
| Incorrectly gapped or worn spark plug - Clean, gap or change spark plug |
| Defective solenoid or starter motor - Change solenoid or repair starter |
