Kubota T1600 Troubleshooting
The

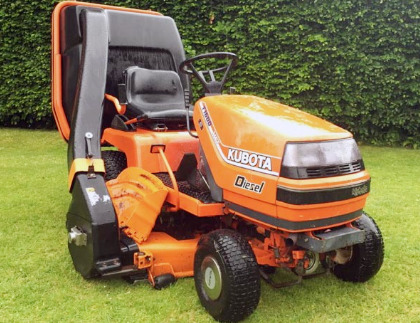

Kubota T1600 lawn tractor was manufactured from 1990 to 1996. The Kubota T1600
driveline consists of a 29.2 cubic inches (479 cc) Kubota Z482 4-cycle vertical
2-cylinder indirect injection naturally aspirated water-cooled diesel engine and
belt-driven hydrostatic transmission with infinite forward and reverse gears.
The engine has a cylinder bore of 2.64" (67 mm), piston stroke of 2.68"
(68 mm), and rated power of 13.5 hp (10.1 kW). Max forward speed - 5.6
mph (9 km/h), max reverse speed - 3.1 mph (5 km/h).
The Kubota T1600 is equipped with a manual steering system, internal
expanding brakes, 15x6.00-6 front tires, and 20x10.00-8 rear tires. The
wheelbase is 47.2" (1190 mm). Compatible attachments for the tractor: a
44" mid-mount 3-blade Kubota RC44LT mower deck with cutting height of
1.0-4.0" (25-100 mm), 42" front-mount Kubota TG2742 snowblower, and 42"
front-mount Kubota T2748 blade.
| Diesel Engine Troubleshooting |
| Engine will not start or hard to start |
| Fuel filter plugging - Clean or replace the filter |
| No fuel supply from the tank - Open the fuel supply valve |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Faulty or dirty injectors - Clean or replace fuel injectors |
| Fuel injection pump damage - Rebuild or replace pump |
| Low engine compression - Inspect cylinder block and change worn parts |
| Engine stalls while running |
| Low coolant temperature - Warm up to required temperature |
| Fuel-line is leaking air - Retighten clamps, replace defective pipes |
| Improper fuel injection - Fuel injection settings required |
| Dirty fuel filter element - Clean the filter or install new filter element |
| Clogged or damaged injectors - Inspect fuel injectors and replace if necessary |
| Engine stops after starting |
| Incorrectly set fuel injection pump timing - Adjust the fuel injection pump timing correctly |
| Fuel filter plugging - Change filter element |
| Fuel injector nozzles are dirty or defective - Install a new set of well-balanced nozzles |
| Fuel injection pump damage - Rebuild or change fuel pump |
| Air cleaner element is dirty - Change or service air cleaner element |
| Engine stalls at low idle speed |
| Incorrectly set low idle speed - Test and adjust |
| Defective fuel injection pump - Repair or replace injection pump |
| Fuel injector nozzles are defective or dirty - Test injector nozzles and replace as required |
| The valve clearance is not adjusted - Adjust valve clearance according to specifications |
| Engine has a lack of coolant - Refill to the correct level. Check radiator and hoses for leaks |
| Cooling system components are defective or system is dirty - Service the cooling system or replace faulty components |
| Low engine oil level - Need to add engine oil |
| Fan belt is defective or belt tension is not adjusted - Adjust belt tension properly or replace it |
| Defective or wrong type of thermostat - Replace the thermostat |
| Diesel engine loses power |
| Faulty or dirty injectors - Check fuel injectors and replace if required |
| Fuel injection pressure is incorrect - Adjust to correct pressure |
| Air filter clogging - Change or service air filter element |
| Engine oil filter is plugged - Clean or change engine oil filter |
| Engine overload - Reduce the load or operate the tractor in lower gears |
| Valve clearance is wrong - Need to adjust valve clearance |
| Incorrect low idle speed adjustment - Need to adjust idle speed |
| Fuel hoses or pipes are clogged - Clean fuel hoses and pipes |
| Engine low compression: Valves are faulty or leaking - Change the valves |
| Engine knocking sound or abnormal noise |
| Timing of fuel injection pump is not adjusted - Check and correct settings |
| Fuel injector nozzles are dirty - Service or replace injector nozzles |
| Low engine oil level - Add oil to the engine crankcase |
| Engine is cold - Warm up the engine to required temperature |
| Worn crankshaft or main bearings - Crankshaft or bearings need to be replaced |
| Broken or worn piston rings - Replace the piston rings as required |
| Flywheel screws are loose - Tighten the screws firmly |
| Excessive oil consumption |
| External oil leaks: Seals or gaskets are wearing excessively - Install new components |
| Crankcase oil too light - Use correct viscosity oil |
| Piston rings are defective or worn - Replace piston rings |
| Damaged valve stems or valve guides - Need to replace the valves |
| Scuffed cylinder liners or pistons - Inspect pistons and liners, fit new components as necessary |
| Hydrostatic Transmission Troubleshooting |
| HST transmission noise |
| Speed control linkage is worn or unadjusted - Adjust or change linkage |
| Excessive transmission load - Reduce the load is required |
| Low transmission oil level or contaminated oil - Add oil to proper level or pour fresh transmission oil |
| Transmission components are damaged or worn - Replace or repair defective components |
| Shift linkage is rusty or worn - Lubricate or replace the linkage |
| Hydrostatic pump is seized or faulty - Replace or repair pump |
| Worn or misadjusted transmission shift control parts - Replace or adjust as required |
| Lack of transmission oil supply - Add oil to the transmission housing |
| Drive pulley is worn or faulty - Replace pulley |
| Shifter linkage is not adjusted or faulty - Change or adjust linkage |
| Speed control pedal linkage is damaged or out of adjustment - Repair or adjust linkage |
| Damaged transmission seals or gaskets - Change gaskets or seals |
| Final drive shaft leaks - Install new shaft seals |
| Cracked transmission housing - Install a new transmission housing |
| Mower Deck Troubleshooting |
| Excessive mower vibration |
| Worn or dirty mower drive pulley - Service or change pulley |
| Worn or loose drive belt - Change belt or adjust belt tension |
| Mower blades are not balanced or warped - Replace or balance blades |
| Blade bolts are not tightened well - Tighten it fast |
| Discharge chute keeps clogging |
| Mowing speed is too high - Use a slower speed |
| Grass is too long - Adjust mower to lower cutting height |
| Engine runs at low revs - Open throttle fully |
| Low cutting height - Use a higher cutting height |
| Incorrect mower drive belt installation - Install drive belt as required |
| Grass patches are not cut |
| Deck clogged with grass clippings - Need to clean the mower deck |
| Excessive blade dullness - Blades need to be sharpened |
| Damaged or worn blades - Replace the blades |
| High mowing speed - Select a slower speed |
| Low cutting height - Use correct cutting height |
| Bagger is overfilled - Remove grass from bagger |
| Lawn is bumpy or not smooth - Roll or level the lawn |
| Mower deck set to low cutting - Use correct cutting height |
| High mowing speed - Use a slower speed |
| Deck is not leveled correctly - Adjust mower deck level properly |
| Worn or bent blades - Change the blades |
| Tires are not correctly inflated - Inflate tires correctly |
| Mower deck to cut unevenly |
| Low tire pressure - Correct tire pressure |
| Mower deck is not leveled properly - Deck should be adjusted correctly |
| Not sharp blades - Blades need to be sharpened |
| Bent or worn blades - Replace the blades |
| Discharge area is clogged - Clean mower deck as required |
| Broken mower deck housing - Repair or replace the deck |
| Loose or defective mower spindle - Install new spindle or repair it |
| Electrical Troubleshooting |
| Battery does not charge |
| Corroded or loose cable connections - Tighten or service connections |
| Electrical terminal connectors are defective - Terminal connectors need to be changed |
| Battery dead cell - Use a new battery |
| Battery power is low - Battery is drained, recharge it |
| Battery runs out quickly - Battery needs service or replacement |
| Wires are disconnected or battery terminals are corroded - Connect wiring correctly or install new terminals |
| Battery is drained or worn - Change or recharge battery |
| Battery cables are disconnected or incorrectly connected - Check cables and connect as needed |
| Battery capacity is low - Recharge the battery |
| Faulty or incorrectly gapped spark plug - Replace or clean and gap |
| Solenoid or starter motor is faulty - Replace solenoid or repair starter |
