Kubota T1700X Maintenance
The

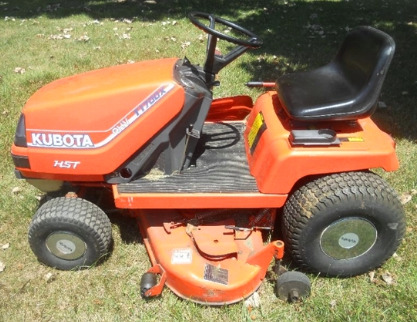

Kubota T1700X is a T-series lawn tractor. This model was manufactured between
1991 and 1996. The Kubota T1700X driveline components: Kawasaki FC540V vertical
1-cylinder forced air-cooled OHV gasoline engine and belt-driven hydrostatic
transmission with nfinite forward and reverse gears.
A 32.6 cubic inches (0.54 L) engine output is 17 hp (12.7 kW) at 3200
rpm. The engine has a float fixed main jet carburetor, diaphragm type
fuel pump, and transistorized flywheel magneto ignition system. Max.
travel speed (forward and reverse): 6.2 mph (10 km/h) / 3.1 mph (5
km/h).
The Kubota T1700X is fitted with 15x6.00-6 front tires and 20x10.00-8
rear tires. The wheel base is 46.9" (1190 mm). The tractor can be
equipped with the following attachments: 44" or 48" mid-mount 3-blade
mower decks, 42" front-mount snow blower, and 44" front blade with a
manual lift system.
| Engine oil capacity, qts (L) |
1.7 (1.6) |
| Transmission fluid capacity, qts (L) |
2.5 (2.4) |
| Fuel tank capacity, gal (L) |
2.8 (10.6) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 30, SAE 10W-30. API Service category SF |
| Transmission fluid type |
SAE 20W-30. API Service category SE |
| Check fuel level |
Every 10 hours |
| Check engine oil level |
Every 10 hours |
| Clean air intake screen |
Every 10 hours |
| Clean engine air cleaner element |
Every 25 hours |
| Clean air intake screen |
Every 25 hours |
| Check and adjust mower belt |
Every 50 hours |
| Lubricate front wheels |
Every 50 hours |
| Check tire pressure and brakes |
Every 50 hours |
| Clean spark plug |
Every 50 hours |
| Check and clean battery terminals |
Every 100 hours |
| Replace air cleaner element |
Every 100 hours |
| Change engine oil |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Check and regap spark plug |
Every 200 hours |
| Charge battery |
Every 200 hours |
| Check engine idle speeds |
Every 200 hours |
| Replace transmission filter |
Every 200 hours |
| Replace spark plug |
Every 300 hours |
| Check carburetor adjustment |
Every 300 hours |
| Change transmission fluid |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Engine oil filter part number |
49065-0724 |
| Engine fuel filter part number |
12499-43230 |
| Engine air cleaner part number |
12499-11210, 11013-2097 (Foam) |
| HST transmission filter part number |
66071-81370 |
| Drive belt part number |
53961-71162 or 66001-52560 |
| Mower PTO belt part number |
76516-61660 or 76517-61670 |
