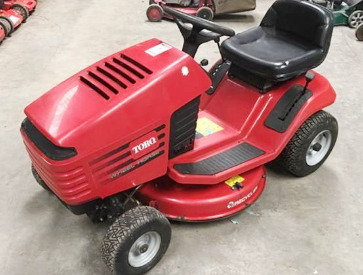

Toro 12-32 XL Lawn Tractor

The Toro 12-32XL is a XL-series lawn tractor. This model was manufactured from 1996 to 2004. The Toro 12-32 XL drivetrain system components: Briggs and Stratton 282707 4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine and Peerless MST-205 belt-driven gear transmission with 5 forward and 1 reverse gears.

A 28.4 cu.in (465 cc) engine has a cylinder bore of 3.44" (87 mm), piston stroke of 3.06" (78 mm), and rated power of 12 hp (8.9 kW). The maximum travel speed (forward/reverse): 5 mph (8 km/h) and 1.7 mph (2.7 km/h).

The Toro 12-32XL tractor is equipped with a manual steering system, band brakes, 13x5.00-6 front tires, and 16x6.50-8 rear tires. The lawn tractor is compatible with the following attachments: 32" mid-mount 1-blade mower deck with cutting height of 1.0-4.0" (25-102 mm), or 42" mid-mount blade.

Engine
Engine Model Briggs and Stratton 282707
Engine Type 4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine
Number of Cylinders 1
Displacement, cu.in (cc) 28.37 (465)
Cylinder Bore, in (mm) 3.44 (87.0)
Piston Stroke, in (mm) 3.06 (78.0)
Rated Engine Power, hp (kW) 12.0 (8.9)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1750
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float
Fuel Pump Pulse type
Governor Type Mechanical
Air Cleaner Paper filter with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion RJ19LM
Spark Plug Gap, in (mm) 0.03 (0.76)
Armature Air Gap, in (mm) 0.010-0.014 (0.25-0.36)
Valve Clearance (Intake), in (mm) 0.003-0.005 (0.08-0.13)
Valve Clearance (Exhaust), in (mm) 0.005-0.007 (0.13-0.18)
Fuel Tank Capacity, gal (L) 1.8 (6.6)
Oil Capacity, qts (L) 1.51 (1.42)

Electrical System
Electrical System Rating, Volts 12
Starter Type Electric
Number of Batteries 1
Battery Rating 12V, 160 CCA
Electric Ground Negative

Power Take-Off
Front PTO Operational Type Independent
Front PTO Clutch Mechanical
Front PTO Speed, rpm 3300

Transmission
Transmission Model Peerless MST-205
Transmission Type Belt-driven gear
Gearbox Type 5F/1R
Number of Forward Gears 5
Number of Reverse Gears 1
Maximum Forward Speed, mph (kph) 5.0 (8.0)
Maximum Reverse Speed, mph (kph) 1.7 (2.7)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Mechanical band
Front Tire Size 13x5.00-6
Rear Tire Size 16x6.50-8

Dimensions and Weight
Wheelbase, in (mm) 47 (1190)
Length, in (mm) 66.5 (1680)
Height, in (mm) 40 (1010)
Overall Width, in (mm) 37.5 (945)
Weight, lb (kg) 375 (170)

32" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 1
Cutting Width, in (mm) 32 (810)
Cutting Height, in (mm) 1.0-4.0 (25-102)
Cut Positions 5
Deck Construction Stamped
Spindle Material Aluminum
Deck Drive Belt
Lift System Mechanical

Front Blade
Blade Type Front-mount
Width, in (mm) 42 (1060)
Lift System Mechanical
Angle Manual
