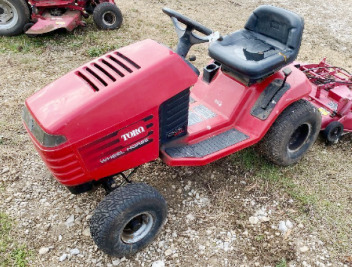

Toro 13-38 HXL Lawn Tractor
The
Toro 13-38 HXL 2WD XL-series lawn tractor was manufactured between 1996 and
1998. The Toro 13-38HXL driveline consists of Briggs and Stratton 28M707 4-cycle
single cylinder OHV vertical shaft air-cooled gasoline engine and Hydro-Gear
321-0500 belt-driven hydrostatic transmission with infinite forward and reverse
gears.
A 28.4 cubic inches (465 cc) engine has a cylinder bore of 3.44" (87
mm), piston stroke of 3.06" (78 mm), and rated power of 13 hp (9.6 kW).
The fuel system has a fixed main jet float type carburetor and pulse
type fuel pump.
The maximum forward speed - 6 mph (9.7 kph), maximum reverse speed - 2.5
mph (4 kph). The Toro 13-38 HXL lawn tractor is equipped with a manual
steering system, band brakes, 15x6.00-6 front tires, and 18x9.50-8 rear
tires. Compatible attachments for the tractor: 42" front blade, or 38"
mid-mount 2-blade mower deck with cutting height of 1.0-4.0" (25-102 mm)
and mechanical lift system.
| Engine Model |
Briggs and Stratton 28M707 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
28.37 (465) |
| Cylinder Bore, in (mm) |
3.44 (87.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
13.0 (9.6) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1200 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Air Cleaner |
Paper filter with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RJ19LM |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.8 (6.6) |
| Oil Capacity, qts (L) |
1.50 (1.40) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 160 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3300 |
| Transmission Model |
Hydro-Gear 321-0500 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
6.0 (9.7) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
66.5 (1680) |
| Height, in (mm) |
40 (1010) |
| Overall Width, in (mm) |
38 (960) |
| Weight, lb (kg) |
415 (188) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Cut Positions |
7 |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Cut Positions |
7 |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
