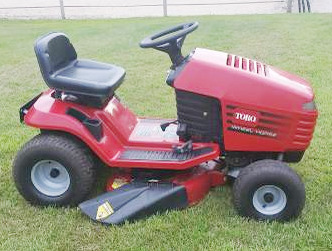

Toro 14-38 HXL Lawn Tractor

The Toro 14-38HXL is a two-wheel drive XL-series lawn tractor. This model was manufactured from 1996 to 1997. The Toro 14-38 HXL drivetrain system components: Briggs and Stratton 28N707 4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine and Hydro-Gear 321-0500 belt-driven hydrostatic transmission with infinite forward and reverse gears.

A 28.4 cu.in (465 cc) engine has a cylinder bore of 3.44" (87 mm), piston stroke of 3.06" (78 mm), and rated power of 14.5 hp (10.8 kW). The maximum travel speed (forward/reverse): 6 mph (9.7 km/h) and 2.5 mph (4 km/h).

The Toro 14-38 HXL tractor is equipped with a manual steering system, band brakes, 15x6.00-6 front tires, and 18x9.50-8 rear tires. The lawn tractor is compatible with the following attachments: 38" mid-mount 2-blade mower deck with cutting height of 1.0-4.0" (25-102 mm) and mechanical lift system, or 42" front-mount blade.

Engine
Engine Model Briggs and Stratton 28N707
Engine Type 4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine
Number of Cylinders 1
Displacement, cu.in (cc) 28.37 (465)
Cylinder Bore, in (mm) 3.44 (87.0)
Piston Stroke, in (mm) 3.06 (78.0)
Rated Engine Power, hp (kW) 14.5 (10.8)
Rated Engine Speed, rpm 3600
Idle Speed, rpm 1400
Cylinder Bore Type Cast iron sleeve
Fuel System Type Carburetor
Carburetor Type Float
Fuel Pump Pulse type
Governor Type Mechanical
Air Cleaner Paper filter with a foam pre-cleaner
Cooling System Forced air
Ignition System Electronic
Spark Plug Type Champion RJ19LM
Spark Plug Gap, in (mm) 0.03 (0.76)
Armature Air Gap, in (mm) 0.010-0.014 (0.25-0.36)
Valve Clearance (Intake), in (mm) 0.003-0.005 (0.08-0.13)
Valve Clearance (Exhaust), in (mm) 0.005-0.007 (0.13-0.18)
Fuel Tank Capacity, gal (L) 1.8 (6.6)
Oil Capacity, qts (L) 1.50 (1.40)

Electrical System
Electrical System Rating, Volts 12
Starter Type Electric
Number of Batteries 1
Battery Rating 12V, 160 CCA
Electric Ground Negative

Power Take-Off
Front PTO Operational Type Independent
Front PTO Clutch Mechanical
Front PTO Speed, rpm 3300

Transmission
Transmission Model Hydro-Gear 321-0500
Transmission Type Belt-driven hydrostatic
Number of Forward Gears Infinite
Number of Reverse Gears Infinite
Maximum Forward Speed, mph (kph) 6.0 (9.7)
Maximum Reverse Speed, mph (kph) 2.5 (4.0)

Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Band
Front Tire Size 15x6.00-6
Rear Tire Size 18x9.50-8

Dimensions and Weight
Wheelbase, in (mm) 47 (1190)
Length, in (mm) 66.5 (1680)
Height, in (mm) 40 (1010)
Overall Width, in (mm) 38 (960)
Weight, lb (kg) 415 (187)

38" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 2
Cutting Width, in (mm) 38 (960)
Cutting Height, in (mm) 1.0-4.0 (25-102)
Cut Positions 7
Deck Construction Stamped
Spindle Material Aluminum
Deck Drive Belt
Lift System Mechanical

Front Blade
Blade Type Front-mount
Width, in (mm) 42 (1060)
Lift System Mechanical
Angle Manual
