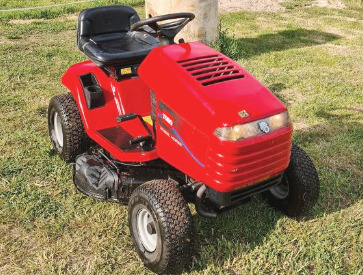

Toro 15-38 HXL Lawn Tractor
The
Toro 15-38 HXL lawn tractor was manufactured from 1998 to 1999. The Toro
15-38HXL lawn tractor is powered by 28.4 cubic inches (465 cc) Briggs and
Stratton 28Q707 4-cycle single cylinder OHV vertical shaft air-cooled gasoline
engine with a rated power of 15.5 Hp (11.6 kW).
The engine has a float fixed main jet carburetor, full pressure
lubrication, air cleaner with paper element, and forced air cooling
system. The tractor is fitted with Hydro-Gear 321-0500 belt-driven
hydrostatic transmission with infinite forward and reverse gears. The
maximum forward speed - 6 mph (9.7 km/h), maximum reverse speed - 2.5
mph (4 km/h).
The Toro 15-38 HXL is equipped with a manual steering system, band
brakes, 15x6.00-6 front tires, and 18x9.50-8 rear tires. The tractor is
compatible with a 42" front-mount blade, or 38" mid-mount 2-blade mower
deck with cutting height of 1.0-4.0" (25-102 mm) and mechanical lift
system.
| Engine Model |
Briggs and Stratton 28Q707 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
28.37 (465) |
| Cylinder Bore, in (mm) |
3.44 (87.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
15.5 (11.6) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1400 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Air Cleaner |
Paper filter with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RJ19LM |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.8 (6.6) |
| Oil Capacity, qts (L) |
1.50 (1.40) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 160 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3300 |
| Transmission Model |
Hydro-Gear 321-0500 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
6.0 (9.7) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.0) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
66.5 (1680) |
| Height, in (mm) |
40 (1010) |
| Overall Width, in (mm) |
38 (960) |
| Weight, lb (kg) |
418 (189) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
38 (960) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Cut Positions |
7 |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
