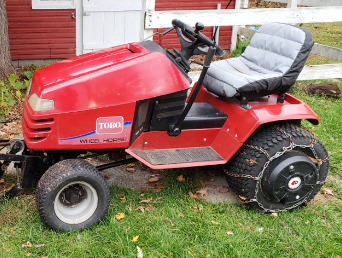

Toro 417XT Garden Tractor
The
Toro 417XT is a 2WD 400XT-series garden tractor. This model was manufactured
from 2003 to 2004. The Toro 417XT drivetrain system components: Kawasaki FH541V
4-stroke vertical V-twin air cooled gasoline engine and Hydro-Gear 330-3000
belt-driven hydrostatic transmission with infinite forward and reverse gears.
A 35.7 cu.in (585 cc) engine has a cylinder bore of 2.92" (74 mm),
piston stroke of 2.69" (68 mm), and rated power of 17 hp (12.7 kW). The
maximum travel speed (forward/reverse): 6.9 mph (11 km/h) and 3.4 mph
(5.5 km/h).
The Toro 417XT tractor is equipped with a manual steering system, band
brakes, 16x6.50-8 front tires, and 23x10.50-12 rear tires. The garden
tractor is compatible with the following attachments: 38", 42", 48" or
52" mid-mount 3-blade mower decks with mechanical lift system, 40"
front-mount two-stage snowblower, 42" front-mount two-stage snowblower,
and 48" front-mount blade.
| Engine Model |
Kawasaki FH541V |
| Engine Type |
4-stroke vertical V-twin air cooled gasoline engine |
| Number of Cylinder |
2 |
| Cylinder Layout |
90 deg V-Twin |
| Piston Displacement, cu.in (cc) |
35.7 (585) |
| Engine Bore, in (mm) |
2.92 (74.0) |
| Engine Stroke, in (mm) |
2.69 (68.0) |
| Engine Power, Hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
49.1 (36.3) |
| Torque Speed, rpm |
2000 |
| Compression Ratio |
8.5:1 |
| Direction of Rotation |
Counterclockwise facing the PTO Shaft |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float type with fixed main jet |
| Fuel Pump |
Pulse Pump |
| Governor |
Flyweight all speed governor |
| Air Cleaner |
Dual stage element, dry type |
| Lubricating System Type |
Pressurized |
| Oil Filter Type |
Dual element |
| Ignition System Type |
Transistorized-fly wheel magneto |
| Spark Plug |
Champion RCJ8Y |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Ignition Coil Air Gap, in (mm) |
0.0079-0.0158 (0.20-0.40) |
| Valve Clearance (Cold), in (mm) |
0.0040-0.0059 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts (L) |
1.8 (1.7) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 340 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Hydro-Gear 330-3000 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
6.9 (11.1) |
| Maximum Reverse Speed, mph (kph) |
3.4 (5.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
49.5 (1250) |
| Length, in (mm) |
69.2 (1750) |
| Height, in (mm) |
45.5 (1150) |
| Overall Width, in (mm) |
36 (910) |
| Weight, lb (kg) |
657 (298) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
38 (960) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
52 (1320) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift System |
Mechanical |
| Angle |
Manual |
