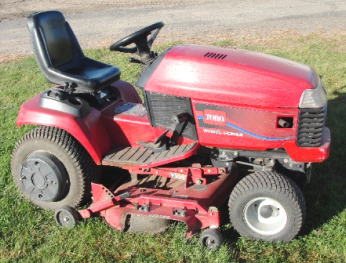

Toro 520LXi Garden Tractor
The
Toro 520LXi is a 5Xi-series garden tractor. This model was manufactured from
1998 to 2002. The Toro 520LXi drivetrain system components: Kawasaki FD620D
4-stroke horizontal shaft OHV liquid-cooled gasoline engine and Eaton Uni-Drive
1100 shaft-driven 2-range hydrostatic transmission with infinite forward and
reverse gears.
A 37.7 cu.in (617 cc) engine has a cylinder bore of 2.99" (76 mm),
piston stroke of 2.68" (68 mm), and rated power of 19 hp (14.2 kW). The
maximum travel speed (forward/reverse): 7.5 mph (12.1 km/h) and 3.4 mph
(5.5 km/h).
The Toro 520LXi garden tractor is equipped with a power steering system,
band brakes, 16x7.50-8 front tires, and 23x10.50-12 rear tires. The
tractor is compatible with the following attachments: 44", 48", 52", and
60" mid-mount right-discharge 3-blade mower decks with hydraulic lift,
42" front-mount 1-stage snowblower, 44" front-mount 2-stage snowblower,
and 48" front-mount blade.
| Engine Model |
Kawasaki FD620D |
| Engine Type |
4-stroke horizontal shaft OHV liquid-cooled gasoline engine |
| Number of Cylinders |
2 |
| Cylinder Layout |
90 deg, V-Twin |
| Cylinder Liners |
Cast iron |
| Displacement, cu in (cc) |
37.7 (617) |
| Engine Bore, in (mm) |
2.99 (76.0) |
| Engine Stroke, in (mm) |
2.68 (68.0) |
| Rated Engine Power, hp (kW) |
19 (14.2) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
44.6 (32.9) |
| Torque Speed, rpm |
2200 |
| Fast Idle Speed, rpm |
3550 |
| Slow Idle Speed, rpm |
1450 |
| Compression Ratio |
9.0:1 |
| Fuel System |
Carburetor |
| Carburetor |
Twin barrel |
| Fuel Pump |
Electric |
| Governor |
All speed mechanical |
| Air Cleaner |
Dual stage element |
| Lubrication System |
Pressurised |
| Oil Filter |
Cartridge type full flow |
| Cooling System |
Pressurized forced circulation type |
| Ignition System |
Transistorized ignition |
| Spark Plug |
NGK BMR4A |
| Spark Plug Type |
NGK BMR4A |
| Spark Plug Gap, in (mm) |
0.024-0.028 (0.60-0.70) |
| Ignition Coil Air Gap, in (mm) |
0.012-0.047 (0.30-1.20) |
| Valve Clearance (Cold), in (mm) |
0.010 (0.25) |
| Fuel Tank Capacity, gal (L) |
4.3 (16.0) |
| Coolant Capacity, qts (L) |
2.9 (2.7) |
| Oil Capacity, qts (L) |
2.2 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
20 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 380 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Eaton Uni-Drive 1100 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-range, Lo-Hi) |
| Number of Reverse Gears |
Infinite (2-range, Lo-Hi) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Maximum Forward Speed (Low Range), mph (kph) |
4.5 (7.2) |
| Maximum Forward Speed (High Range), mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed (Low Range), mph (kph) |
2.0 (3.2) |
| Maximum Reverse Speed (High Range), mph (kph) |
3.4 (5.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power |
| Brakes Type |
Band |
| Front Tire Size |
16x7.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
52 (1320) |
| Length, in (mm) |
76.5 (1940) |
| Height, in (mm) |
45.5 (1150) |
| Overall Width, in (mm) |
40.5 (1020) |
| Weight, lb (kg) |
1024 (465) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
52 (1320) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift System |
Hydraulic |
| Angle |
Manual |
