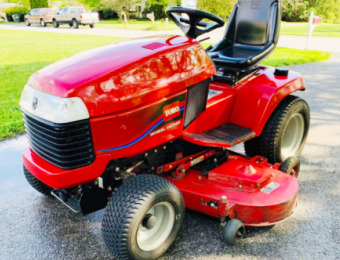

Toro 522Xi Garden Tractor
The
Toro 522Xi garden tractor was manufactured from 1998 to 2006. The Toro 522Xi
tractor is powered by 41.1 cubic inches (674 cc) Kohler Command CH22S 4-cycle
V-Twin cylinder air-cooled gasoline engine with a rated power of 22 Hp (16.4
kW).
The engine has an one-barrel carburetor with fixed main jet, full
pressure lubrication with full-flow type oil filter, and electronic
ignition system. The tractor is fitted with Eaton Uni-Drive 1100
shaft-driven 2-range hydrostatic transmission with infinite forward and
reverse gears. The maximum forward speed - 7.5 mph (12.1 km/h), maximum
reverse speed - 3.4 mph (5.5 km/h).
The Toro 522Xi is equipped with a power steering, band brakes, 16x7.50-8
front tires, and 23x10.50-12 rear tires. The garden tractor is
compatible with 44", 48", 52", or 60" mid-mount 3-blade mower decks with
hydraulic lift, 42" front-mount single-stage snowblower, 44" front-mount
two-stage snowblower, 48" front-mount blade, and Toro 79947 front-end
loader with maximum lift height of 77" (1950 mm).
| Engine Model |
Kohler Command CH22S |
| Engine Type |
4-cycle V-Twin air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
41.1 (674) |
| Engine Bore, in (mm) |
3.15 (80.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
51.8 (38.2) |
| Torque Speed, rpm |
2200 |
| Idle Speed, rpm |
1150-1300 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
One-Barrel, fixed main jet |
| Fuel Pump Type |
Pulse or Mechanical |
| Governor Type |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Ignition Type |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.011-0.013 (0.28-0.33) |
| Fuel Tank Capacity, gal (L) |
4.3 (16.0) |
| Oil Capacity, qts (L) |
2.1 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 380 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3600 |
| Transmission Model |
Eaton Uni-Drive 1100 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-range, Lo-Hi) |
| Number of Reverse Gears |
Infinite (2-range, Lo-Hi) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Maximum Forward Speed (Low Range), mph (kph) |
4.5 (7.2) |
| Maximum Forward Speed (High Range), mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed (Low Range), mph (kph) |
2.0 (3.2) |
| Maximum Reverse Speed (High Range), mph (kph) |
3.4 (5.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power |
| Brakes Type |
Band |
| Front Tire Size |
16x7.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
52 (1320) |
| Length, in (mm) |
76.5 (1940) |
| Height, in (mm) |
45.5 (1150) |
| Overall Width, in (mm) |
40.5 (1020) |
| Weight, lb (kg) |
1025 (463) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
52 (1320) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift System |
Hydraulic |
| Angle |
Manual |
