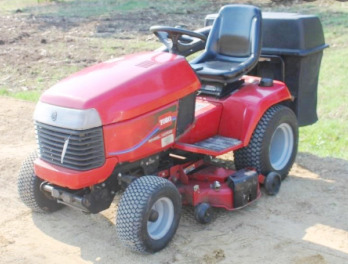

Toro 523DXi Garden Tractor
The
Toro 523DXi 5Xi-series diesel garden tractor was manufactured between 1998 and
2002. The Toro 523DXi driveline consists of Briggs and Stratton 522447 4-stroke
three-cylinder horizontal shaft liquid-cooled diesel engine and Eaton Uni-Drive
1100 shaft-driven 2-range hydrostatic transmission with infinite forward and
reverse gears.
A 51.8 cubic inches (952 cc) engine has a cylinder bore of 2.83" (72
mm), piston stroke of 3.07" (78 mm), and rated power of 23 hp (17.2 kW).
The fuel system has an injection pump, injector nozzles, and fuel
filter. The maximum forward speed - 7.5 mph (12.1 kph), maximum reverse
speed - 3.4 mph (5.5 kph).
The Toro 523DXi garden tractor is equipped with a power steering system,
band brakes, 16x7.50-8 front tires, and 23x10.50-12 rear tires.
Compatible attachments for the tractor: 44", 48", 52", or 60" mid-mount
3-blade mower decks with hydraulic lift system, 42" front-mount
one-stage snowblower, 44" front-mount double-stage snowblower, 48"
front-mount blade, and Toro Wheel Horse front-end loader with maximum
lift height of 88" (2230 mm).
| Engine Model |
Briggs and Stratton 522447 |
| Engine Type |
4-stroke three-cylinder horizontal shaft liquid-cooled diesel |
| Number of Cylinders |
3 |
| Cylinder Layout |
In-Line |
| Displacement, cu.in (cc) |
51.8 (952) |
| Engine Bore, in (mm) |
2.83 (72.0) |
| Engine Stroke, in (mm) |
3.07 (78.0) |
| Maximum Horse Power, hp (kW) |
23 (17.2) |
| Rated Engine Speed, rpm |
3400 |
| Direction of rotation |
Counterclockwise (looking at flywheel) |
| Fuel System |
Injection pump |
| Lubricating System |
Pressure feed with spin-on oil filter |
| Cooling System |
Liquid-cooled including water pump |
| Coolant Capacity, qts (L) |
4.5 (4.2) |
| Oil Capacity, qts (L) |
3.2 (3.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
40 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 495 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Electric |
| Front PTO Speed, rpm |
3300 |
| Transmission Model |
Eaton Uni-Drive 1100 |
| Transmission Type |
Shaft-driven hydrostatic |
| Number of Forward Gears |
Infinite (2-range, Lo-Hi) |
| Number of Reverse Gears |
Infinite (2-range, Lo-Hi) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Maximum Forward Speed (Low Range), mph (kph) |
4.5 (7.2) |
| Maximum Forward Speed (High Range), mph (kph) |
7.5 (12.1) |
| Maximum Reverse Speed (Low Range), mph (kph) |
2.0 (3.2) |
| Maximum Reverse Speed (High Range), mph (kph) |
3.4 (5.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power |
| Brakes Type |
Band |
| Front Tire Size |
16x7.50-8 |
| Rear Tire Size |
23x10.50-12 |
| Wheelbase, in (mm) |
52 (1320) |
| Length, in (mm) |
76.5 (1940) |
| Height, in (mm) |
45.5 (1150) |
| Overall Width, in (mm) |
40.5 (1020) |
| Weight, lb (kg) |
1150 (520) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
44 (1110) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
52 (1320) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Hydraulic |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Hydraulic |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift System |
Hydraulic |
| Angle |
Manual |
