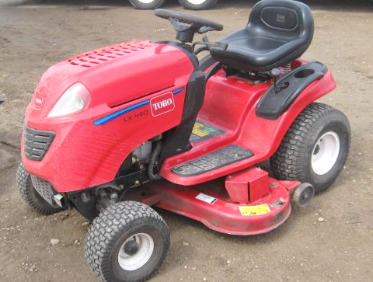

Toro LX460 Lawn Tractor
The
Toro LX460 is a 2WD LX-series lawn tractor. This model was manufactured by MTD
built from 2006 to 2007. The Toro LX460 drivetrain system components: Kohler
Courage SV600 4-cycle single-cylinder vertical shaft air-cooled gasoline engine
and mechanical CVT transmission with infinite forward and reverse gears.
A 36.4 cu.in (597 cc) engine has a cylinder bore of 3.70" (94 mm),
piston stroke of 3.38" (86 mm), and rated power of 20 hp (14.9 kW). The
maximum travel speed (forward/reverse): 5.5 mph (8.8 km/h) and 2.3 mph
(3.7 km/h).
The Toro LX460 riding lawn mower is equipped with a manual steering
system, disc brakes, 15x6.00-6 front tires, and 20x10.00-8 rear tires.
The tractor is compatible with the following attachments: 46" mid-mount
3-blade mower deck with cutting height of 1.5-4.0 in (40-102 mm) and
mechanical lift system, 42" front-mount 2-stage snowblower, or 46"
front-mount blade.
| Engine Model |
Kohler Courage SV600 |
| Engine Type |
Gasoline, 4-cycle single-cylinder vertical shaft air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
36.4 (597) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Low Idle Speed, rpm |
1450-1550 |
| Maximum Torque, Nm (ft-lbs) |
44.2 (32.0) |
| Torque Speed, rpm |
2800 |
| Compression |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Governor |
Mechanical |
| Lubrication |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC/QC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
1.9 (2.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery CCA |
190 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Type |
Mechanical CVT |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.00-8 |
| Wheelbase, in (mm) |
46 (1160) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
41 (1040) |
| Overall Width, in (mm) |
38 (960) |
| Weight, lb (kg) |
450 (204) |
| Mower Deck Type |
Mid-mount, side-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (40-102) |
| Cut Positions |
6 |
| Deck Construction |
Stamped |
| Spindle Material |
Aluminum |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1160) |
| Lift System |
Mechanical |
| Angle |
Manual |
