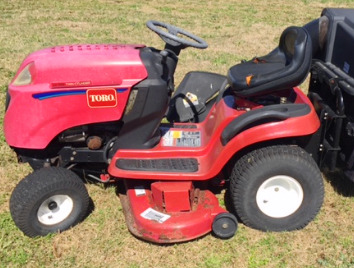

Toro LX466 Lawn Tractor
The
Toro LX466 lawn tractor was manufactured by MTD built from 2008 to 2009. The
Toro LX466 tractor is powered by 40 cubic inches (656 cc) Briggs and Stratton
407777 4-cycle V-twin cylinder OHV vertical-shaft air-cooled gasoline engine
with a rated power of 22 Hp (16.4 kW).
The engine has a float-feed carburetor with fixed main jet, full
pressure lubrication, forced air cooling system, and electronic spark
ignition. The riding lawn mower is fitted with a belt-driven hydrostatic
transmission with infinite forward and reverse gears.
The maximum forward speed - 5.5 mph (8.8 km/h), maximum reverse speed -
2.3 mph (3.7 km/h). The Toro LX466 is equipped with a manual steering
system, disc brakes, 15x6.00-6 front tires, and 20x8.00-12 rear tires.
The tractor is compatible with a 44" mid-mount 3-blade mower deck with
cutting height of 1.5-4.0 in (40-102 mm) and manual lifting system, 42"
front-mount double-stage snowblower, and 46" front-mount blade.
Engine Model |
Briggs and Stratton 407777 |
Engine Type |
4-cycle V-twin cylinder OHV vertical-shaft air-cooled gasoline engine |
Number of Cylinders |
2 |
Displacement, cu.in (cc) |
40.03 (656) |
Cylinder Bore, in (mm) |
2.97 (75.0) |
Piston Stroke, in (mm) |
2.89 (73.0) |
Rated Engine Power, hp (kW) |
22.0 (16.4) |
Rated Engine Speed, rpm |
3300 |
Idle Speed, rpm |
1600 |
Cylinder Bore Type |
Cast iron sleeve |
Fuel System Type |
Carburetor |
Carburetor Type |
Float-feed |
Fuel Pump |
Pulse type |
Governor Type |
Mechanical |
Lubrication System |
Full pressure |
Air Cleaner |
Paper cartridge with a foam pre-cleaner |
Cooling System |
Forced air |
Ignition System |
Electronic |
Spark Plug Gap, in (mm) |
0.030 (0.76) |
Magneto Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
Valve Lash (Intake), in (mm) |
0.005 (0.127) |
Valve Lash (Exhaust), in (mm) |
0.005 (0.127) |
Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
Oil Capacity, qts (L) |
2.0 (1.9) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Starter Type |
Electric |
Number of Batteries |
1 |
Electric Ground |
Negative |
Front PTO Operational Type |
Independent |
Front PTO Clutch |
Mechanical |
Front PTO Speed, rpm |
3200 |
Transmission Type |
Hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front steer |
Steering System |
Manual |
Brakes Type |
Disc |
Front Tire Size |
15x6.00-6 |
Rear Tire Size |
20x8.00-12 |
Wheelbase, in (mm) |
48 (1210) |
Length, in (mm) |
71 (1800) |
Height, in (mm) |
42 (1065) |
Overall Width, in (mm) |
38 (960) |
Weight, lb (kg) |
630 (285) |
Mower Deck Type |
Mid-mount, side-discharge |
Number of Blades |
3 |
Cutting Width, in (mm) |
44 (1110) |
Cutting Height, in (mm) |
1.5-4.0 (40-102) |
Cut Positions |
6 |
Deck Construction |
Stamped |
Spindle Material |
Aluminum |
Deck Drive |
Belt |
Lift System |
Mechanical |
Snowblower Type |
Front-mount, 2-stage |
Clearing Width, in (mm) |
42 (1060) |
Lift System |
Mechanical |
Blade Type |
Front-mount |
Width, in (mm) |
42 (1160) |
Lift System |
Mechanical |
Angle |
Manual |
