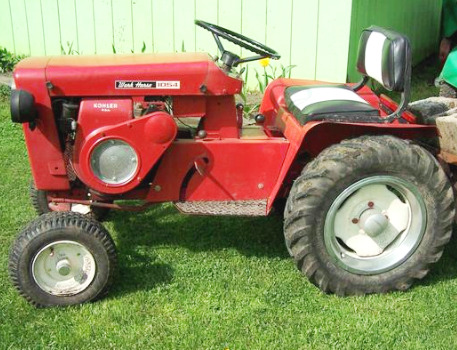

Wheel Horse 1054 Garden Tractor
The
Wheel Horse 1054 garden tractor was manufactured from 1964 to 1965. The
components of Wheel Horse 1054 driveline system: a 23.9 cu.in (391 cc) Kohler
K241S 4-cycle 1-cylinder air-cooled gasoline engine with a rated power of 10 hp
(7.5 kW), and Wheel Horse Uni-Drive belt-driven gear transmission with 3 forward
and 1 reverse gears.
The engine has a Walbro or Kohler carburetor with fixed main jet or
adjustable main jet, splash type lubrication system, and forced-air
cooling system. The maximum forward speed - 6 mph (9.6 km/h), maximum
reverse speed - 2.5 mph (4.1 km/h). The Wheel Horse 1054 was equipped
with a manual steering system, band type brakes, 4.00x8 front tires, and
6.40x15 rear tires. The wheelbase is 47" (1190 mm).
The tractor is compatible with a 42" mid-mount 3-blade RM-485 mower deck
with cutting height of 1.5-3.75" (38-95 mm) and hydraulic lift system,
37" front-mount ST-375 snowblower, and 54" front-mount BD-543 blade.
| Engine Model |
Kohler K241S |
| Engine Type |
4-Cycle, one cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (L) |
23.9 (0.391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Rated Horse Power, Hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Valve Clearance (Intake), in (mm) |
0.0079-0.0099 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Breaker Point Gap (Nominal), in (mm) |
0.020 (0.50) |
| Fuel Tank Capacity, gal (L) |
2.8 (10.5) |
| Oil Capacity, qt (L) |
2.02 (1.90) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
4.00x8 |
| Rear Tire Size |
6.40x15 |
| Wheelbase, in (mm) |
47 (1190) |
| Length, in (mm) |
69 (1750) |
| Height (Hood), in (mm) |
35 (880) |
| Height (Steering Wheel), in (mm) |
42 (1060) |
| Overall Width, in (mm) |
36.5 (920) |
| Ground Clearance, in (mm) |
9.5 (240) |
| Weight, lb (kg) |
650 (295) |
| Mower Deck Model |
RM-485 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-3.75 (38-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Hydraulic |
| Snowblower Model |
ST-375 |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
37 (930) |
| Lift System |
Mechanical/Hydraulic |
| Blade Model |
BD-543 |
| Blade Type |
Front-mount |
| Width, in (mm) |
54 (1370) |
| Lift System |
Hydraulic |
| Angle |
Manual |
