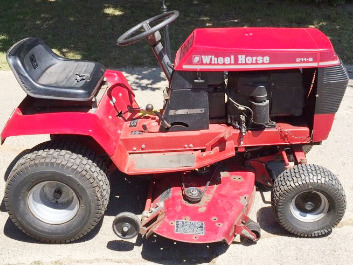

Wheel Horse 211-5 Garden Tractor
The
Wheel Horse 211-5 garden tractor was manufactured from 1985 to 1989. The Wheel
Horse 211-5 tractor is powered by 24.3 cu.in (399 cc) Briggs and Stratton 252707
4-cycle vertical-shaft single cylinder air-cooled gasoline with a rated power of
11 Hp (8.2 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, and foam air cleaner. The Wheel Horse 211-5 is fitted
with a 2 transmission options: Peerless 801 or Peerless 920 belt-driven
gear transmissions with 5 forward and 1 reverse gears.
The maximum travel speed (forward/reverse): 5 mph (8 km/h) and 2.4 mph
(3.9 km/h). The tractor was equipped with a manual steering system,
mechanical brakes, 13x6.50-6 front tires, and 18x9.50-8 rear tires. The
tractor is compatible with a 36" mid-mount mower deck with manual lift,
37" mid-mount mower deck with manual lift, 42" front blade, and 37"
front-mount snowblower.
| Engine Model |
Briggs and Stratton 252707 |
| Engine Type |
4-cycle vertical-shaft single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
24.35 (399) |
| Engine Bore, in (mm) |
3.44 (87.3) |
| Engine Stroke, in (mm) |
2.62 (66.7) |
| Maximum Engine Power, hp (kW) |
11.0 (8.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Maximum Torque, Nm (ft-lbs) |
22.7 (16.8) |
| Torque Speed, rpm |
2800 |
| Fuel System |
Carburetor |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with oil filter |
| Air Cleaner Type |
Foam |
| Spark Plug |
Champion J-8/CJ-8 |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Ignition Point Gap, in (mm) |
0.020 (0.51) |
| Intake Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.18) |
| Exhaust Valve Clearance, in (mm) |
0.009-0.011 (0.23-0.28) |
| Fuel Tank Capacity, gal (L) |
1.5 (5.7) |
| Oil Capacity, qts (L) |
1.5 (1.42) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
9 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, AH |
39 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Peerless 801 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
1.1 (1.0) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
1.6 (2.6) |
| Transmission Model |
Peerless 920 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
13x6.50-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
45 (1140) |
| Length, in (mm) |
63 (1590) |
| Height, in (mm) |
39.3 (990) |
| Overall Width, in (mm) |
35 (890) |
| Weight, lb (kg) |
360 (164) |
| Mower Deck Type |
Mid-mount, rear-discharge |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-3.5 (40-90) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Weight, lb (kg) |
95 (43) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
37 (935) |
| Cutting Height, in (mm) |
1.5-3.5 (40-90) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Weight, lb (kg) |
91 (41) |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
37 (935) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
