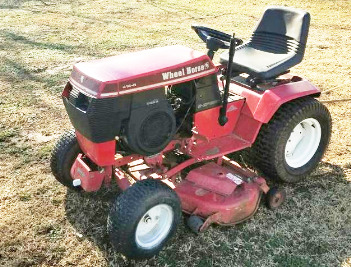

Wheel Horse 414-8 Garden Tractor
The
Wheel Horse 414-8 is a 400 Series garden tractor. This model was manufactured
from 1986 to 1989. The Wheel Horse 414-8 driveline includes a Kohler M14
four-cycle single cylinder air-cooled gasoline engine and belt-driven gear
transmission with 6 forward and 2 reverse gears.
A 31.3 cu.in (512 cc) engine has a cylinder bore of 3.5" (89 mm), piston
stroke of 3.25" (83 mm), and rated power of 14 hp (10.4 kW). The maximum
travel speed (forward/reverse): 5.5 mph (8.8 km/h) and 2.6 mph (4.2
km/h).
The Wheel Horse 414-8 tractor is equipped with a manual steering system,
band-type brakes, 16x6.50-8 front tires, and 23x8.50-12 rear tires. The
tractor is compatible with the following attachments: 36", 42", 48"
mid-mount 3-blade mower decks with manual lift system, 42" front-mount
single-stage snowblower, or 48" front blade.
| Engine Model |
Kohler M14 |
| Engine Type |
Gasoline, 4-cycle single cylinder air-cooled |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
31.28 (512) |
| Engine Bore, in (mm) |
3.50 (89.0) |
| Engine Stroke, in (mm) |
3.25 (83.0) |
| Rated Engine Power, hp (kW) |
14.0 (10.4) |
| Rated Engine Speed, rpm |
3600 |
| Compression |
7.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Side-draft, adjustable jet |
| Fuel Pump Type |
Mechanical |
| Fuel Filter Type |
In-line |
| Governor Type |
Mechanical |
| Air Cleaner |
Paper element with pre-cleaner |
| Ignition Type |
Electronic magneto |
| Intake Valve Clearance, in (mm) |
0.008-0.010 (0.20-0.25) |
| Exhaust Valve Clearance, in (mm) |
0.017-0.019 (0.43-0.048) |
| Spark Plug Gap, in (mm) |
0.025 (0.63) |
| Module Air Gap, in (mm) |
0.012-0.016 (0.30-0.40) |
| Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery CCA |
220 |
| Electric Ground |
Negative |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.6 (4.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1115) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
40.5 (1020) |
| Overall Width, in (mm) |
36.4 (920) |
| Weight (w/o Mower Deck), lb (kg) |
554 (249) |
| Mower Deck Type |
Mid-mount, rear-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Lift System |
Manual |
| Weight, lb (kg) |
102 (46) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Weight, lb (kg) |
135 (61) |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Lift System |
Manual |
| Weight, lb (kg) |
168 (76) |
| Snowblower Type |
Front-mount, single-stage |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
48 (1215) |
| Lift System |
Manual |
| Angle |
Manual |
