Wheel Horse 416H Garden Tractor
The

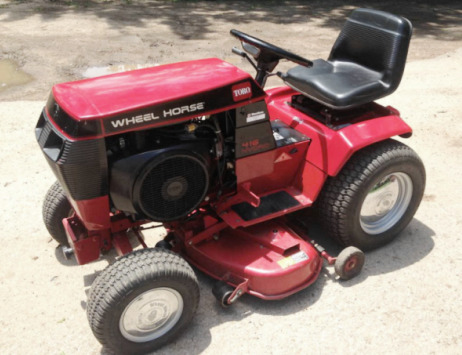

Wheel Horse 416H is a 2-wheel drive garden tractor from 400-series. This model
was manufactured between 1990 and 1997. The components of Wheel Horse 416H
driveline system: Onan P218 four-stroke 2-cylinder air-cooled gasoline engine
and Eaton 1100-032 belt-driven hydrostatic transmission with infinite forward
and reverse gears.
A 43.3 cubic inches engine has a cylinder bore of 3.25" (83 mm), a
piston stroke of 2.63" (67 mm) and rated power of 16 hp (11.9 kW). Max.
forward speed - 5.6 mph (9 km/h), maximum reverse speed - 3.4 mph (5.5
km/h).
The Wheel Horse 416H was equipped with a manual steering system, band
brakes, 16x6.00-6 front tires, and 23x9.50-12 rear tires. The wheelbase
is 45.5" (1115 mm). The tractor is compatible with a 42" mid-mount
3-blade mower deck with a manual lifting.
| Engine Model |
Onan P218 |
| Engine Type |
4 Stroke 2-cylinder air-cooled gasoline |
| Number of Cylinders |
2 |
| Cylinder Bore, in (mm) |
3.25 (83.0) |
| Piston Stroke, in (mm) |
2.63 (67.0) |
| Total Displacement, cu. in (cc) |
43.3 (709) |
| Gross Power, Hp (kw) |
16.0 (11.9) |
| Maximum Speed, rpm |
3500 |
| Idle Speed, rpm |
1350 |
| Crankshaft Alignment |
Horizontal |
| Cylinder Material |
Aluminum |
| Compression Ratio |
7.0:1 |
| Fuel System Type |
Carburetor |
| Fuel Pump Type |
Pulse |
| Fuel Delivery |
Fixed Jet Carburetor |
| Cylinder Compression, psi (kPa) |
75-115 (517-793) |
| Lubricating System Type |
Full Pressure with filter |
| Ignition System |
Electronic |
| Spark Plugs |
Champion RS14YC |
| Spark Plug Gap, in (mm) |
0.025 (0.64) |
| Ignition Timing, BTC |
20 deg |
| Fuel Tank Capacity, gal (L) |
1.8 (6.7) |
| Oil Capacity, qts, (L) |
1.8 (1.7) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
20 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Rating |
12V, 200 CCA |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Model |
Eaton 1100-032 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.6 (9.0) |
| Maximum Reverse Speed, mph (kph) |
3.4 (5.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Band |
| Front Tire Size |
16x6.00-6 |
| Rear Tire Size |
23x9.50-12 |
| Wheelbase, in (mm) |
45.5 (1115) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
43.5 (1095) |
| Overall Width, in (mm) |
36.5 (920) |
| Weight (w/o Mower Deck), lb (kg) |
601 (272) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Weight, lb (kg) |
135 (61) |
