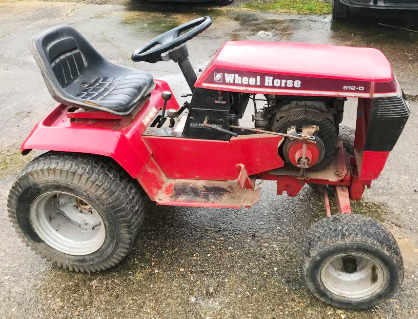

Wheel Horse 512D Garden Tractor
The
Wheel Horse 512D is a 2WD diesel garden tractor. This model was manufactured
between 1986 and 1987. The Wheel Horse 512D powerline system components: Robin
DY41DS 4-stroke single cylinder OHV air-cooled diesel engine and belt-driven
gear transmission with 6 forward and 2 reverse gears.
A 25.14 cubic inches (412 cc) engine has a cylinder bore of 3.23" (82
mm), piston stroke of 3.07" (78 mm), rated power of 8.5 hp (6.3 kW), and
max torque of 19.7 Nm (14.6 lb-ft) at 2400 rpm. Max forward speed - 5.5
mph (8.8 km/h), max reverse speed - 2.6 mph (4.2 km/h).
The diesel garden tractor was equipped with a manual steering system,
band type brakes, 15x6.00-6 front tires, and 23x8.50-12 rear tires. The
wheel base is 45.5" (1150 mm). The Wheel Horse 512D is compatible with a
42" mid-mount 3-blade mower deck with manual lift system.
| Engine Model |
Robin DY41DS |
| Engine Type |
4 Stroke single cylinder OHV air-cooled diesel |
| Number of Cylinders |
1 |
| Total Displacement, cu. in (cc) |
25.14 (412) |
| Cylinder Bore, in (mm) |
3.23 (82.0) |
| Piston Stroke, in (mm) |
3.07 (78.0) |
| Gross Power, Hp (kw) |
8.5 (6.3) |
| Maximum Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
19.7 (14.6) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
21:1 |
| Fuel System Type |
Injection pump |
| Combustion System |
Direct injection type |
| Fuel Feed |
Gravity type |
| Governor Type |
Centrifugal flyweight |
| Lubricating System |
Forced oil lubrication |
| Oil Pump |
Trochoid gear type |
| Rotation |
Counter-Clockwise (viewed from PTO side) |
| Fuel Tank Capacity, gal (L) |
1.2 (4.5) |
| Oil Capacity, qts, (L) |
1.2 (1.1) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.6 (4.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
band |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
40.5 (1020) |
| Overall Width, in (mm) |
36.5 (920) |
| Weight (w/o Mower Deck), lb (kg) |
530 (240) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Weight, lb (kg) |
135 (61) |
