Wheel Horse 702 Garden Tractor
The

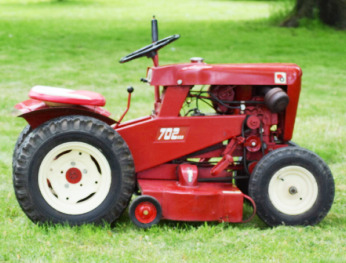

Wheel Horse 702 is a 2-wheel drive garden tractor. This model was manufactured
from 1962 to 1963. The Wheel Horse 702 driveline includes a Kohler K161S 4-cycle
1-cylinder air-cooled gasoline engine and Wheel Horse Uni-Drive belt-driven gear
transmission with 3 forward and 1 reverse gears.
A 16.9 cu.in (277 cc) engine has a cylinder bore of 2.94" (75 mm),
piston stroke of 2.50" (64 mm), and maximum power of 7 hp (5.2 kW). The
maximum travel speed (forward/reverse): 5 mph (8 kph) and 2.5 mph (4.1
kph).
The Wheel Horse 702 tractor is equipped with a manual steering system,
4.00x8 front tires, and 6.00x12 rear tires. The tractor is compatible
with the following attachments: 32" mid-mount 2-blade mower deck with
manual lift, 36" mid-mount 2-blade mower deck with manual lift, 30"
front-mount single-stage snowblower, and 42" front blade.
| Engine Model |
Kohler K161S |
| Engine Type |
4-Cycle 1 cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (cc) |
16.9 (277) |
| Engine Bore, in (mm) |
2.94 (75.0) |
| Engine Stroke, in (mm) |
2.50 (64.0) |
| Maximum Horse Power, hp (kW) |
7.0 (5.2) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Plug Gap, in (mm) |
0.0256 (0.65) |
| Valve Clearance (Intake), in (mm) |
0.0059-0.0079 (0.15-0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
1.0 (3.8) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
4.00x8 |
| Rear Tire Size |
6.00x12 |
| Wheelbase, in (mm) |
41 (1040) |
| Length, in (mm) |
60 (1520) |
| Height (Hood), in (mm) |
31 (780) |
| Height (Steering Wheel), in (mm) |
35.5 (900) |
| Overall Width, in (mm) |
30 (760) |
| Ground Clearance, in (mm) |
8 (200) |
| Weight, lb (kg) |
416 (188) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
32 (810) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
30 (760) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
