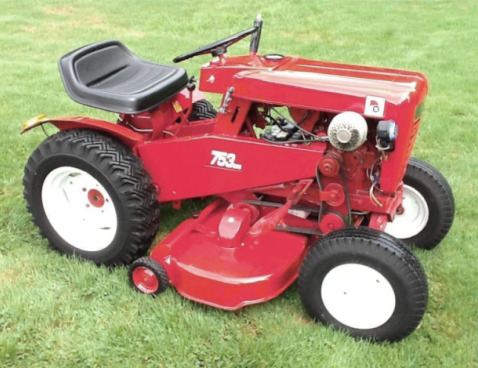

Wheel Horse 753 Garden Tractor
The
Wheel Horse 753 garden tractor was manufactured from 1963 to 1964. The Wheel
Horse 753 is equipped with a Kohler K161S 4-cycle 1 cylinder air-cooled gasoline
engine rated at 7 hp (5.2 kW).
The engine has a fixed main jet or adjustable main jet carburetor,
splash type lubrication system, and forced-air cooling system. The Wheel
Horse Uni-Drive belt-driven gear transmission includes a gearbox with 3
forward and 1 gears. Max. forward speed - 5 mph (8 kph), max. reverse
speed - 2.5 mph (4.1 kph). The tractor is fitted with 4.00x8 front tires
and 6.00x12 rear tires.
The wheelbase is 41.3 inches (1045 mm). The Wheel Horse 753 garden
tractor tractor is compatible with 32" and 36" mid-mount 2-blade mower
decks with a cutting height of 1.0-3.75 inches (25-95 mm), 42" front
blade, and 32" front-mount single-stage snow blower with mechanical lift
system.
| Engine Model |
Kohler K161S |
| Engine Type |
4-Cycle 1 cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (cc) |
16.9 (277) |
| Engine Bore, in (mm) |
2.94 (75.0) |
| Engine Stroke, in (mm) |
2.50 (64.0) |
| Maximum Horse Power, hp (kW) |
7.0 (5.2) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Plug Gap, in (mm) |
0.0256 (0.65) |
| Valve Clearance (Intake), in (mm) |
0.0059-0.0079 (0.15-0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
1.0 (3.8) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
4.00x8 |
| Rear Tire Size |
6.00x12 |
| Wheelbase, in (mm) |
41.3 (1045) |
| Length, in (mm) |
61 (1540) |
| Height (Hood), in (mm) |
31.5 (790) |
| Height (Steering Wheel), in (mm) |
36.5 (920) |
| Overall Width, in (mm) |
32 (810) |
| Ground Clearance, in (mm) |
7.3 (180) |
| Weight, lb (kg) |
419 (190) |
| Mower Deck Model |
RM-323 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
32 (810) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Mower Deck Model |
RM-363 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Snowblower Model |
ST-323 |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
32 (810) |
| Lift System |
Mechanical |
| Blade Model |
BD-4263 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
