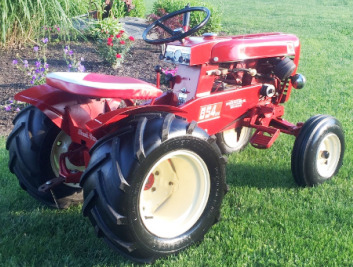

Wheel Horse 854 Garden Tractor
The
Wheel Horse 854 garden tractor was manufactured between 1964 and 1965. The Wheel
Horse 854 driveline consists of a 25 cu.in (725 cc) Kohler K181S 4-stroke single
cylinder air-cooled gasoline engine and Wheel Horse Uni-Drive belt-driven gear
transmission with 3 forward and 1 reverse gears.
The engine has a cylinder bore of 2.94" (74.6 mm), piston stroke of
2.75" (69.9 mm), and max power of 8 hp (6 kW). The fuel system has a
carburetor made by Kohler or Walbro with fixed main jet or adjustable
main jet. The maximum forward speed - 5.5 mph (8.8 km/h), maximum
reverse speed - 2.5 mph (4.1 km/h).
The Wheel Horse 854 tractor is equipped with a manual steering, 4.00x8
front tires, and 6.00x12 rear tires. Compatible attachments for the
tractor: 32" mid-mount 2-blade RM-324 mower deck, 36" mid-mount 2-blade
RM-364 mower deck, 42" mid-mount 2-blade mower deck, 32" front-mount
single-stage ST-324 snowblower with mechanical lifting system, or 42"
front blade.
| Engine Model |
Kohler K181S |
| Engine Type |
4-stroke single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
18.6 (0.308) |
| Engine Bore, in (mm) |
2.94 (74.6) |
| Engine Stroke, in (mm) |
2.75 (69.9) |
| Maximum Horse Power, hp (kW) |
8.0 (6.0) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Intake Valve Clearance, in (mm) |
0.006-0.008 (0.15-0.20) |
| Exhaust Valve Clearance, in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
1.0 (3.8) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
4.00x8 |
| Rear Tire Size |
6.00x12 |
| Wheelbase, in (mm) |
41.3 (1045) |
| Length, in (mm) |
60 (1520) |
| Height (Hood), in (mm) |
32 (805) |
| Height (Steering Wheel), in (mm) |
37 (935) |
| Overall Width, in (mm) |
30 (760) |
| Ground Clearance, in (mm) |
7.3 (180) |
| Weight, lb (kg) |
400 (181) |
| Mower Deck Model |
RM-324 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
32 (810) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Mower Deck Model |
RM-364 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.0-3.75 (25-95) |
| Deck Drive System |
Belt driven |
| Lift System |
Mechanical |
| Snowblower Model |
ST-324 |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
32 (810) |
| Lift System |
Mechanical |
| Blade Model |
BD-4264 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
