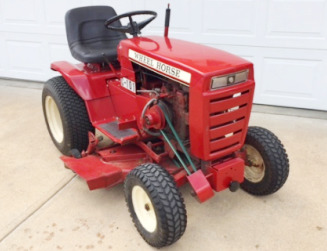

Wheel Horse C-101 Garden Tractor
The
Wheel Horse C101 garden tractor was manufactured between 1978 and 1979. The
Wheel Horse C-101 powerline system components: Kohler K241AS 4-cycle
one-cylinder air-cooled gasoline engine and belt-driven gear transmission with 6
forward and 2 reverse gears.
A 23.9 cubic inches (391 cc) engine has a cylinder bore of 3.25" (85.5
mm), piston stroke of 2.88" (73 mm), and rated power of 10 hp (7.5 kW).
The maximum forward speed - 5.5 mph (8.8 km/h), maximum reverse speed -
2.6 mph (4.2 km/h). The tractor was equipped with 18x6.50-8 front tires
and 23x8.50-12 rear tires.
The wheel base is 45.5 inches (1150 mm). Compatible attachments for the
Wheel Horse C101 garden tractor: a 36" mid-mount 3-blade right-discharge
mower deck, 42" mid-mount 3-blade rear-discharge mower deck, 42"
front-mount blade, and 42" front-mount snow blower.
| Engine Model |
Kohler K241AS |
| Engine Type |
4-Cycle 1 cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (cc) |
23.9 (391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Maximum Horse Power, Hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Crankshaft Alignment |
Horizontal |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Valve Clearance (Intake), in (mm) |
0.0079-0.0099 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Breaker Point Gap (Nominal), in (mm) |
0.020 (0.50) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Model |
Wheel Horse |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R, Hi-Lo |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.6 (4.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
41 (1040) |
| Overall Width, in (mm) |
36 (910) |
| Weight, lb (kg) |
590 (267) |
| Mower Deck Type |
Mid-mount, rear-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.25-3.25 (32-82) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount, right-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-3.25 (38-82) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
