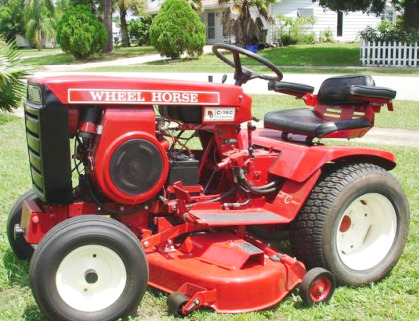

Wheel Horse C160 Garden Tractor
The
Wheel Horse C-160 garden tractor was manufactured from 1974 to 1977. The Wheel
Horse C160 is powered by 35.9 cu.in (588 cc) Kohler K341AS single cylinder
air-cooled gasoline engine with a rated power of 16 Hp (12 kW), or 27.66 cu.in
(453.4 cc) Tecumseh HH160 single-cylinder horizontal air-cooled gasoline engine
with a rated power of 16 Hp (12 kW).
The Wheel Horse C160 is fitted with 2 types of transmission. Type 1:
belt-driven gear transmission with 6 forward and 2 reverse gears. Type
2: Sundstrand belt-driven hydrostatic transmission with infinite forward
and reverse gears.
Max travel speed (forward and reverse): 6.3 mph (10.1 km/h) / 3.2 mph
(5.1 km/h). The garden tractor was equipped with a manual steering
system, drum type brakes, 16x6.50-8 front tires, and 23x8.50-12 rear
tires. The wheel base is 45.5" (1150 mm). The Wheel Horse C-160 is
compatible with 36", 42", or 48" mid-mount 3-blade mower decks, 42"
front-mount snow blower, and 42" front-mount blade.
| Engine Model |
Kohler K341AS |
| Engine Type |
4-Cycle single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
35.9 (0.588) |
| Engine Bore, in (mm) |
3.75 (95.4) |
| Engine Stroke, in (mm) |
3.25 (82.6) |
| Rated Horse Power, hp (kW) |
16.0 (12.0) |
| Rated Engine Speed, rpm |
3600 |
| Crankshaft Alignment |
Horizontal |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Breaker Point Gap (Nominal), in (mm) |
0.020 (0.50) |
| Valve Clearance (Intake), in (mm) |
0.008-0.010 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qt (L) |
2.26 (2.21) |
| Engine Model |
Tecumseh HH160 |
| Engine Type |
4-cycle single-cylinder horizontal air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
27.66 (453.4) |
| Cylinder Bore, in (mm) |
3.50 (88.9) |
| Piston Stroke, in (mm) |
2.88 (73.0) |
| Crankshaft |
Iron alloy |
| Cylinder |
Cast iron alloy |
| Rated Engine Power, hp (kW) |
16.0 (11.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
33.9 (25.1) |
| Torque Speed, rpm |
2800 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float, adjustable jet |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Air Cleaner |
Paper element |
| Cooling System |
Forced air |
| Ignition System |
Solid state magneto |
| Spark Plug Type |
Champion RL82C |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Intake Valve Clearance, in (mm) |
0.005-0.010 (0.13-0.25) |
| Exhaust Valve Clearance, in (mm) |
0.005-0.010 (0.13-0.25) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
1.65 (1.56) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Model |
Wheel Horse |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R, Hi-Lo |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed (Low), mph (kph) |
1.4 (2.3) |
| Maximum Forward Speed (High), mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed (Low), mph (kph) |
0.6 (1.0) |
| Maximum Reverse Speed (High), mph (kph) |
2.6 (4.2) |
| Transmission Model |
Sundstrand |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
6.3 (10.1) |
| Maximum Reverse Speed, mph (kph) |
3.2 (5.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
41 (1040) |
| Overall Width, in (mm) |
36 (910) |
| Weight (Gear Transmission), lb (kg) |
600 (272) |
| Weight (Hydro Transmission), lb (kg) |
640 (290) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.25-3.25 (32-82) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.50-3.25 (32-82) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
