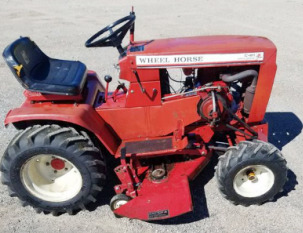

Wheel Horse C-81 Garden Tractor
The
Wheel Horse C-81 is a two-wheel drive garden tractor. This model was
manufactured from 1978 to 1979. The components of Wheel Horse C81 powerline
system: Kohler K181 four-stroke single cylinder air-cooled gasoline engine and
6x2 Hi-Lo belt-driven gear transmission.
A 18.6 cubic inches (308 cc) engine has a cylinder bore of 2.94" (74.6
mm), piston stroke of 2.75" (69.9 mm), and rated power of 8 hp (6 kW).
The maximum forward speed (Low-High range) - 1.4-5.5 mph (2.3-8.8 km/h),
maximum reverse speed (Low-High range) - 0.6-2.6 mph (1.0-4.2 km/h).
The garden tractor was equipped with 16x6.50-8 front tires and
23x8.50-12 rear tires. The wheelbase is 45.5" (1150 mm). Compatible
attachments for the Wheel Horse C81: a 36" mid-mount 3-blade
rear-discharge mower deck with cutting height of 1.25-3.25" (32-82 mm),
42" front-mount snow blower with mechanical lifting system, and 42"
front-mount blade.
| Engine Model |
Kohler K181 |
| Engine Type |
4-stroke single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
18.6 (0.308) |
| Engine Bore, in (mm) |
2.94 (74.6) |
| Engine Stroke, in (mm) |
2.75 (69.9) |
| Maximum Horse Power, hp (kW) |
8.0 (6.0) |
| Rated Engine Speed, rpm |
3600 |
| Crankshaft Alignment |
Horizontal |
| Cylinder Material |
Aluminum |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Intake Valve Clearance, in (mm) |
0.006-0.008 (0.15-0.20) |
| Exhaust Valve Clearance, in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
15 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3200 |
| Transmission Model |
Wheel Horse |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R, Hi-Lo |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed (Low), mph (kph) |
1.4 (2.3) |
| Maximum Forward Speed (High), mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed (Low), mph (kph) |
0.6 (1.0) |
| Maximum Reverse Speed (High), mph (kph) |
2.6 (4.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x6.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
41 (1040) |
| Overall Width, in (mm) |
36 (910) |
| Weight, lb (kg) |
540 (245) |
| Mower Deck Type |
Mid-mount, rear-discharge |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.25-3.25 (32-82) |
| Deck Drive |
Belt |
| Lift System |
Manual |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Manual |
| Angle |
Manual |
