Wheel Horse Charger 10 Tractor
The

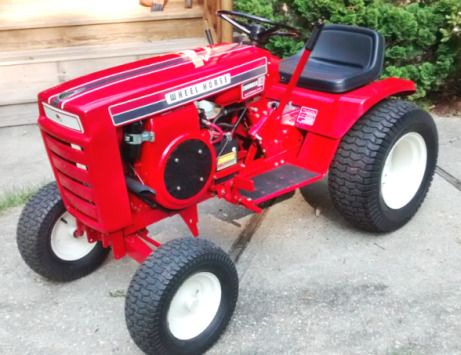

Wheel Horse Charger 10 garden tractor was manufactured from 1969 to 1972. The
Wheel Horse Charger 10 tractor is powered by 23.7 cu.in (388 cc) Tecumseh HH100
4-cycle single cylinder horizontal-shaft air-cooled gasoline engine with a rated
power of 10 hp (7.5 kW), or 23.9 cu.in (391 cc) Kohler K241S 4-cycle one
cylinder air-cooled gasoline engine with a rated power of 10 hp (7.5 kW).
The garden tractor is equipped with Sundstrand 90 belt-driven
hydrostatic transmission with infinite forward and reverse gears. The
maximum forward speed - 7 mph (11.3 km/h), max reverse speed - 3 mph
(4.8 km/h).
The Wheel Horse Charger 10 was equipped with a manual steering system,
mechanical brakes, 16x5.50-8 front tires, and 23x8.50-12 rear tires. The
wheelbase is 45.5" (1150 mm). The tractor is compatible with 36" or 42"
mid-mount 3-blade mower decks with manual lifting, 37" front-mount snow
blower, and 42" front-mount blade.
| Engine Model |
Tecumseh HH100 |
| Engine Type |
4-cycle single cylinder horizontal-shaft air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
23.7 (388) |
| Engine Bore, in (mm) |
3.31 (84.0) |
| Engine Stroke, in (mm) |
2.75 (70.0) |
| Rated Engine Power, hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Fuel System |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump |
Impulse type |
| Governor |
Centrifugal flyball type |
| Lubrication System |
Splash type |
| Air Cleaner |
Dry element |
| Ignition System |
Flywheel magneto |
| Spark Plug Gap, in (mm) |
0.028-0.033 (0.711-0.838) |
| Magneto Air Gap, in (mm) |
0.006-0.010 (0.152-0.254) |
| Intake Valve Clearance, in (mm) |
0.010 (0.25) |
| Exhaust Valve Clearance, in (mm) |
0.020 (0.51) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Engine Model |
Kohler K241S |
| Engine Type |
4-Cycle, one cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (L) |
23.9 (0.391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Maximum Horse Power, Hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Governor Type |
Mechanical |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Battery |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Breaker Point Gap (Nominal), in (mm) |
0.020 (0.50) |
| Valve Clearance (Intake), in (mm) |
0.0079-0.0099 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qt (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Sundstrand 90 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Oil Capacity, qt (L) |
5.0 (4.7) |
| Maximum Forward Speed, mph (kph) |
7.0 (11.3) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x5.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height, in (mm) |
39 (985) |
| Overall Width, in (mm) |
36 (910) |
| Ground Clearance, in (mm) |
6.8 (165) |
| Weight, lb (kg) |
625 (283) |
| Mower Deck Model |
5-0711 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Model |
5-1001 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Snowblower Model Number |
6-6212 |
| Clearing Width, in (mm) |
37 (930) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
