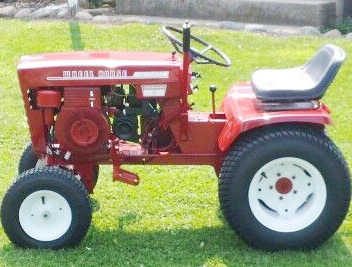

Wheel Horse Commando 6 Tractor
The
Wheel Horse Commando 6 is a two-wheel drive garden tractor. This model was
manufactured from 1968 to 1969. The Wheel Horse Commando 6 driveline includes a
Tecumseh HH60 4-cycle L-head single-cylinder horizontal shaft air-cooled
gasoline engine and Wheel Horse Uni-Drive belt-driven gear transmission with 3
forward and 1 reverse gears.
A 13.5 cu.in (222 cc) engine has a cylinder bore of 2.63" (66.7 mm),
piston stroke of 2.5" (63.5 mm), and rated power of 6 hp (4.5 kW). The
maximum travel speed (forward/reverse): 6 mph (9.6 km/h) and 2.5 mph
(4.1 km/h).
The Wheel Horse Commando 6 tractor is equipped with a manual steering,
16x4.00x8 front tires, and 22.5x6.00x12 rear tires. The tractor is
compatible with the following attachments: 32" mid-mount 2-blade mower
deck with mechanical lift, 36" mid-mount 2-blade mower deck with
mechanical lift, 32" front-mount single-stage snowblower, and 42" front
blade.
| Engine Model |
Tecumseh HH60 |
| Engine Type |
4-cycle L-head single-cylinder horizontal air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
13.53 (221.76) |
| Cylinder Bore, in (mm) |
2.63 (66.7) |
| Piston Stroke, in (mm) |
2.50 (63.5) |
| Rated Engine Power, hp (kW) |
6.0 (4.5) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
12.4 (9.2) |
| Torque Speed, rpm |
2600 |
| Compression Ratio |
6.19:1 |
| Crankshaft Type |
Iron alloy |
| Cylinder Type |
Cast iron alloy |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float, adjustable jet |
| Governor Type |
Mechanical |
| Fuel Filter |
Fine mesh molded into tank |
| Lubrication System |
Splash type |
| Air Cleaner |
Paper element |
| Cooling System |
Forced air |
| Ignition System |
Magneto with dust and moisture seal |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Breaker Point Gap, in (mm) |
0.020 (0.508) |
| Intake Valve Clearance, in (mm) |
0.008-0.012 (0.20-0.31) |
| Exhaust Valve Clearance, in (mm) |
0.008-0.012 (0.20-0.31) |
| Fuel Tank Capacity, qts (L) |
1.0 (3.8) |
| Oil Capacity, qts (L) |
0.60 (0.57) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric or recoil |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qt (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x4.00x8 |
| Rear Tire Size |
22.5x6.00x12 |
| Wheelbase, in (mm) |
41.3 (1040) |
| Length, in (mm) |
61 (1540) |
| Height, in (mm) |
37.5 (950) |
| Overall Width, in (mm) |
31 (860) |
| Ground Clearance, in (mm) |
7.5 (190) |
| Weight, lb (kg) |
398 (180) |
| Mower Deck Model |
5-2321 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
32 (810) |
| Cutting Height, in (mm) |
1.5-3.5 (38-90) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Model |
5-2361 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Snowblower Model Number |
6-2211 |
| Clearing Width, in (mm) |
32 (810) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
