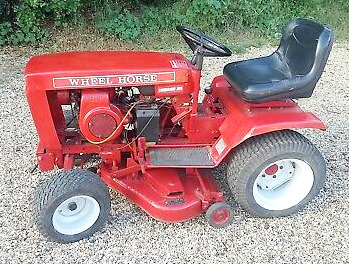

Wheel Horse Commando 800 Tractor
The
Wheel Horse Commando 800 is a 2WD garden tractor. This model was manufactured
from 1971 to 1972. The Wheel Horse Commando 800 driveline includes a Tecumseh
HH80 4-cycle L-head single-cylinder horizontal shaft air-cooled gasoline engine
with a rated power of 8 hp (6 kW) or Kohler K181S 4-stroke single cylinder
air-cooled gasoline engine with a rated power of 8 hp (6 kW), and 8x4 Wheel
Horse Uni-Drive 5085 belt-driven gear transmission with 3 forward and 1 reverse
gears.
The maximum travel speed (forward/reverse): 6 mph (9.6 km/h) and 2.5 mph
(4.1 km/h). The Wheel Horse Commando 800 tractor is equipped with a
manual steering system, 15x6.00x6 front tires, and 20x8.00x10 rear
tires. The tractor is compatible with the following attachments: 36"
mid-mount 2-blade mower deck with manual lift, 32" front-mount
single-stage snowblower, 40" front blade.
| Engine Model |
Tecumseh HH80 |
| Engine Type |
4-cycle L-head single-cylinder horizontal air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
19.4 (317) |
| Cylinder Bore, in (mm) |
3.00 (76.0) |
| Piston Stroke, in (mm) |
2.75 (70.0) |
| Rated Engine Power, hp (kW) |
8.0 (6.0) |
| Rated Engine Speed, rpm |
3600 |
| Crankshaft Type |
Iron alloy |
| Cylinder Type |
Cast iron alloy |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float, adjustable jet |
| Governor Type |
Mechanical |
| Fuel Filter |
Fine mesh molded into tank |
| Lubrication System |
Splash type |
| Air Cleaner |
Paper element |
| Cooling System |
Forced air |
| Ignition System |
Magneto with dust and moisture seal |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.030 (0.762) |
| Fuel Tank Capacity, qts (L) |
1.25 (4.7) |
| Oil Capacity, qts (L) |
0.60 (0.57) |
| Engine Model |
Kohler K181S |
| Engine Type |
4-stroke single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
18.6 (0.308) |
| Engine Bore, in (mm) |
2.94 (74.6) |
| Engine Stroke, in (mm) |
2.75 (69.9) |
| Maximum Horse Power, hp (kW) |
8.0 (6.0) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Intake Valve Clearance, in (mm) |
0.006-0.008 (0.15-0.20) |
| Exhaust Valve Clearance, in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
1.25 (4.7) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Front PTO Operational Type |
Independent |
| Front PTO Clutch |
Mechanical |
| Front PTO Speed, rpm |
3000 |
| Transmission Model |
Wheel Horse Uni-Drive 5085 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qt (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
15x6.00x6 |
| Rear Tire Size |
20x8.00x10 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Snowblower Model Number |
6-2211 |
| Clearing Width, in (mm) |
32 (810) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
