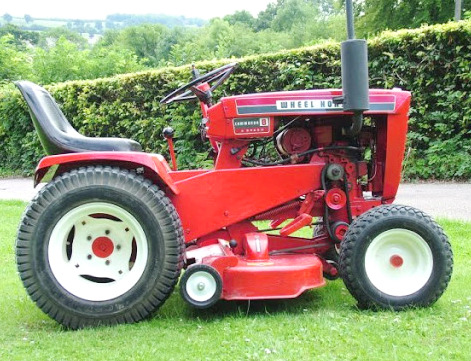

Wheel Horse Commando 8 Tractor
The
Wheel Horse Commando 8 garden tractor was manufactured between 1968 and 1969.
The components of Wheel Horse Commando 8 powerline system: 18.6 cu.in (308 cc)
Kohler K181S 4-stroke single cylinder air-cooled gasoline engine with a maximum
power of 8 Hp (6 kW), and Wheel Horse Uni-Drive belt-driven gear transmission
with 3 forward and 1 reverse gears.
The engine has a carburetor with fixed main jet or adjustable main jet,
splash type lubrication, and forced-air cooling system. Max. travel
speed (forward/reverse): 6 mph (9.6 km/h) and 2 mph (3.2 km/h).
The Wheel Horse Commando 8 was equipped with 15x5.50x8 front tires and
20x8.50-12 rear tires. The wheelbase is 41.3 in (1040 mm). The garden
tractor is compatible with the following attachments: a 36" mid-mount
2-blade mower deck with cutting height of 1.5-4.0" (38-102 mm) and
manual lifting system, 32" front-mount snowblower, and 42" front-mount
blade.
| Engine Model |
Kohler K181S |
| Engine Type |
4-stroke single cylinder air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (L) |
18.6 (0.308) |
| Engine Bore, in (mm) |
2.94 (74.6) |
| Engine Stroke, in (mm) |
2.75 (69.9) |
| Maximum Horse Power, hp (kW) |
8.0 (6.0) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Ignition System |
Magneto or battery |
| Spark Plug Type |
Champion RJ8C |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Intake Valve Clearance, in (mm) |
0.006-0.008 (0.15-0.20) |
| Exhaust Valve Clearance, in (mm) |
0.017-0.019 (0.43-0.48) |
| Fuel Tank Capacity, gal (L) |
1.25 (4.7) |
| Oil Capacity, qt (L) |
1.3 (1.2) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse Uni-Drive |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qt (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.0 (3.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
15x5.50x8 |
| Rear Tire Size |
20x8.50x12 |
| Wheelbase, in (mm) |
41.3 (1040) |
| Length, in (mm) |
61 (1540) |
| Height, in (mm) |
37.5 (950) |
| Overall Width, in (mm) |
35 (885) |
| Ground Clearance, in (mm) |
7.3 (180) |
| Weight, lb (kg) |
430 (195) |
| Mower Deck Model |
5-2361 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Snowblower Model Number |
6-2211 |
| Clearing Width, in (mm) |
32 (810) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
